Chapter 3 93

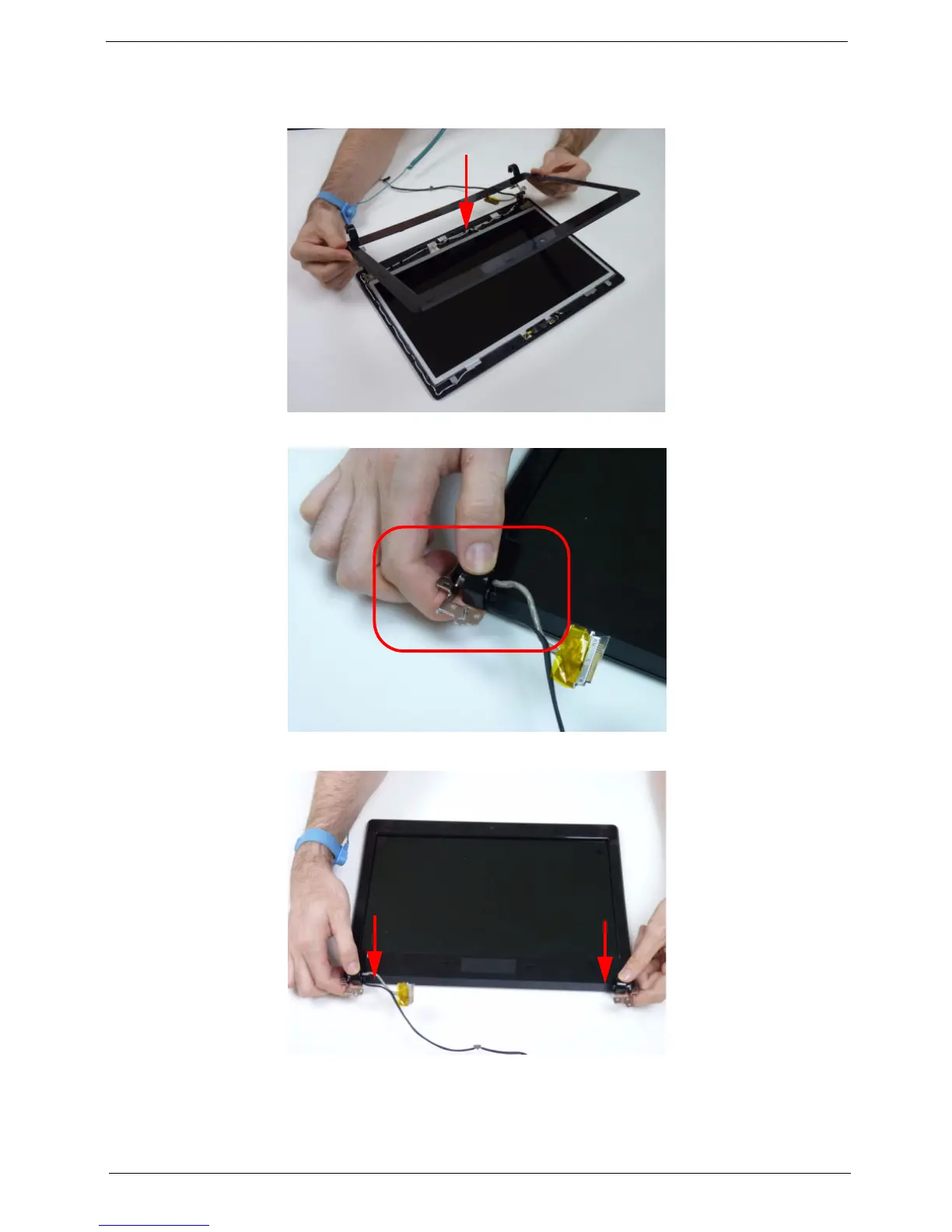

Replacing the LCD Bezel
1. Place the bezel hinge covers over the hinges.
2. Ensure the LVDS and WLAN antenna cable bundle are exiting the left hinge as shown.
3. Apply pressure to snap the latches together.
