Chapter 3 83
Removing the LCD Panel
1. See “Removing the LCD Bezel” on page 80.

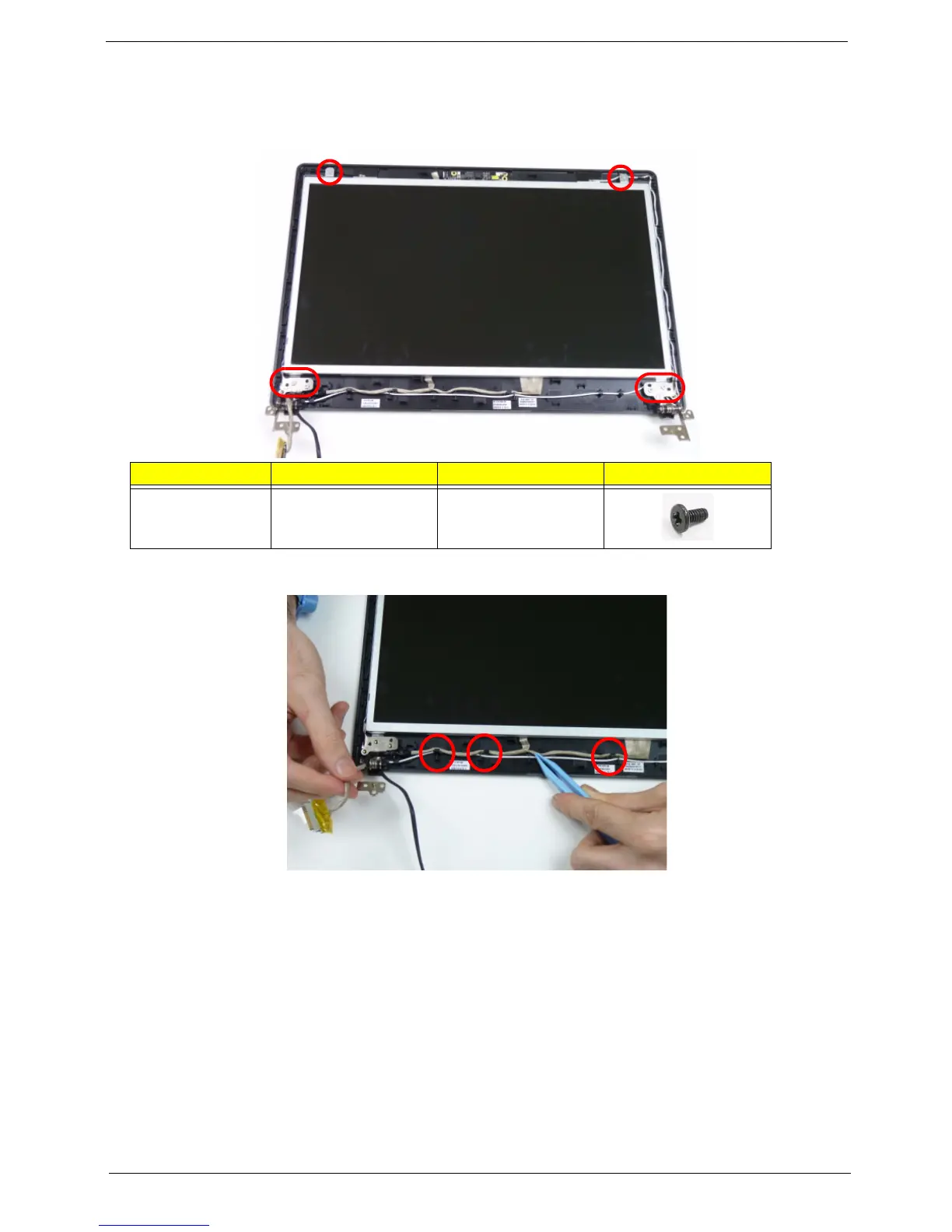

2. Remove the six (6) securing screws from the LCD panel.
3. Remove the LVDS cable from the cable guides.
Step Size Quantity Screw Type
LCD Panel
Disassembly
M2.5*4.0 6
