Chapter 3 87
LCD Module Assembly Process
Replacing the WLAN Antennas

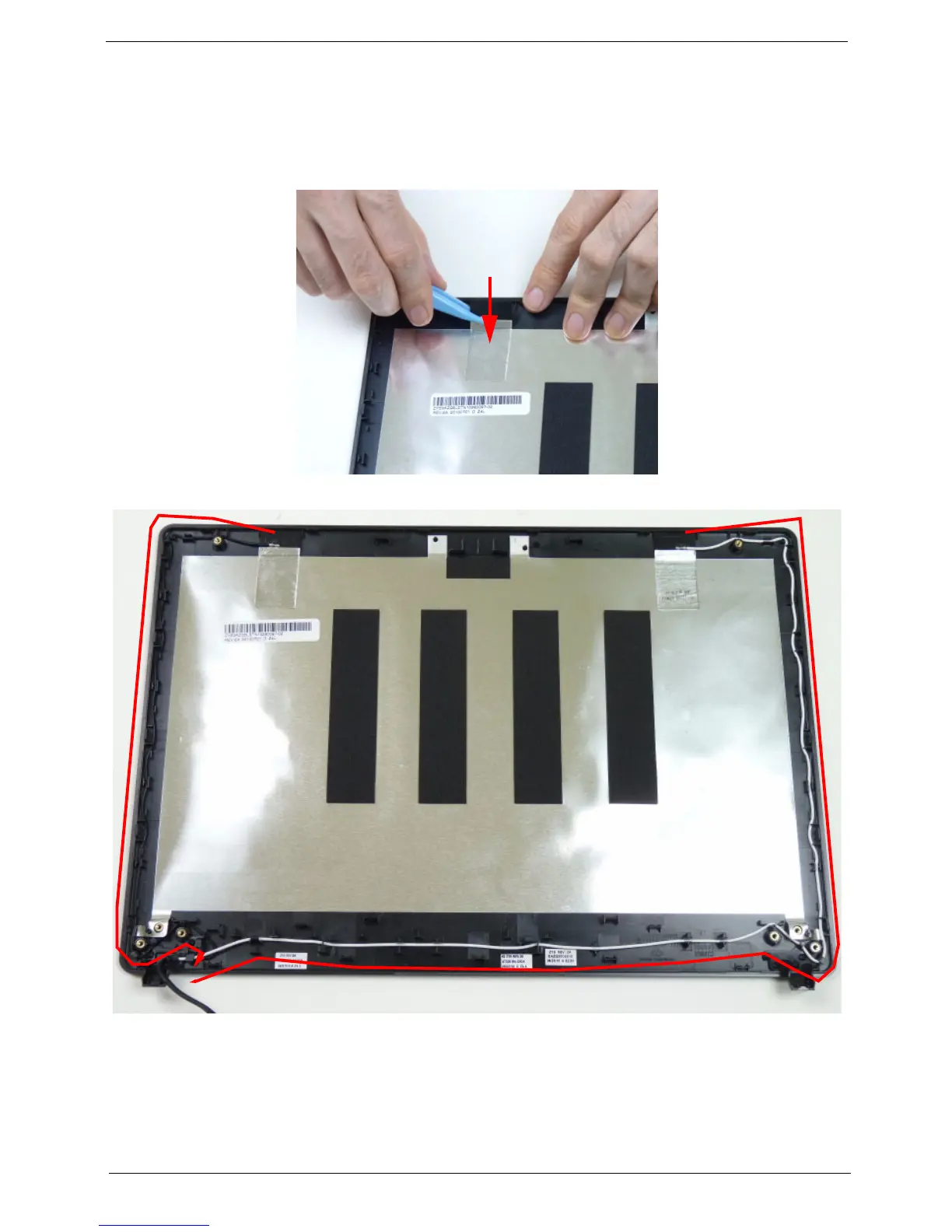

1. Place the black antenna cable onto the LCD cover as shown. Repeat for the white antenna.
2. Place the black and white WLAN antennas into the cable guides as shown.
