eMachines D732 - Replacing the Cpu

100 Chapter 3
Replacing the CPU

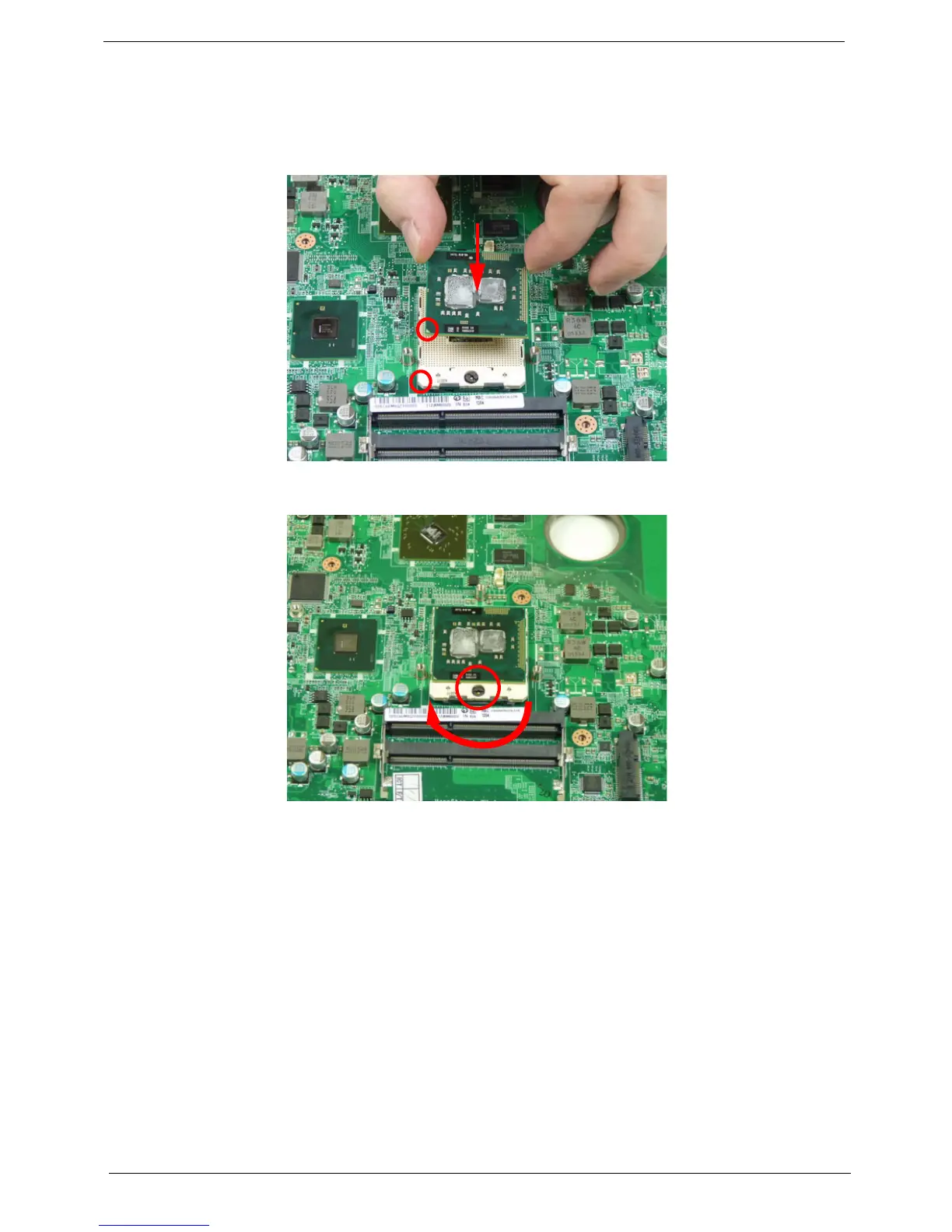

IMPORTANT:The CPU has a Pin1 locator (1) that must be positioned corresponding to the marker (2) on the
CPU socket.
1. Place the CPU into the CPU socket as shown, taking note of the Pin1 locator.
2. Using a slotted screw driver, rotate the CPU locking screw 180° clockwise as shown to secure it in the
package.
1
2
