Chapter 3 79
LCD Module Disassembly Process

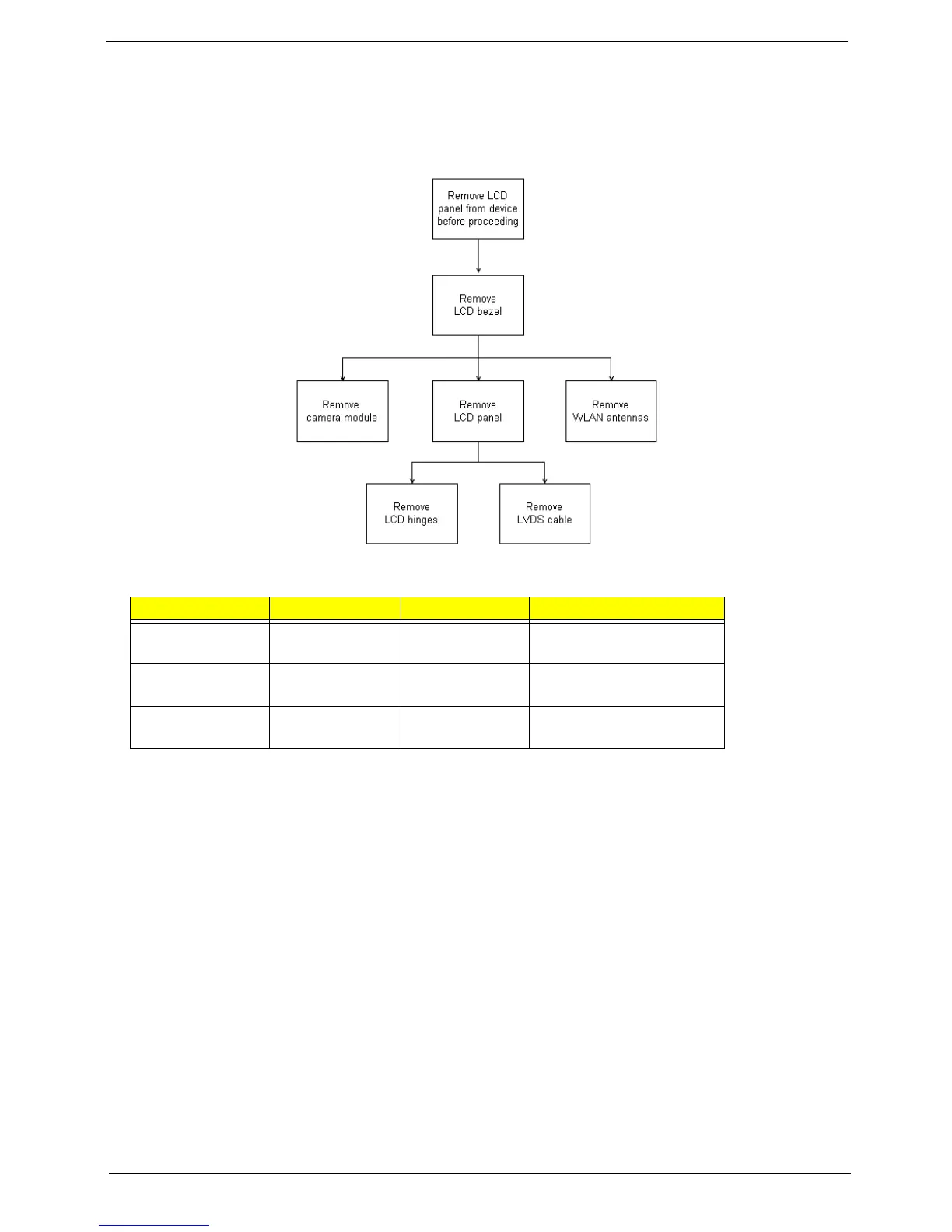

LCD Module Disassembly Flowchart
Screw List
Step Screw Quantity Part No.
LCD Bezel
Disassembly
M2.5*5.0 2 86.T23V7.010
LCD Panel
Disassembly
M2.5*4.0 6 86.R6Z07.001
LCD Hinge
Disassembly
M2.0*3.0 6 86.ARE07.002
