108 Chapter 3

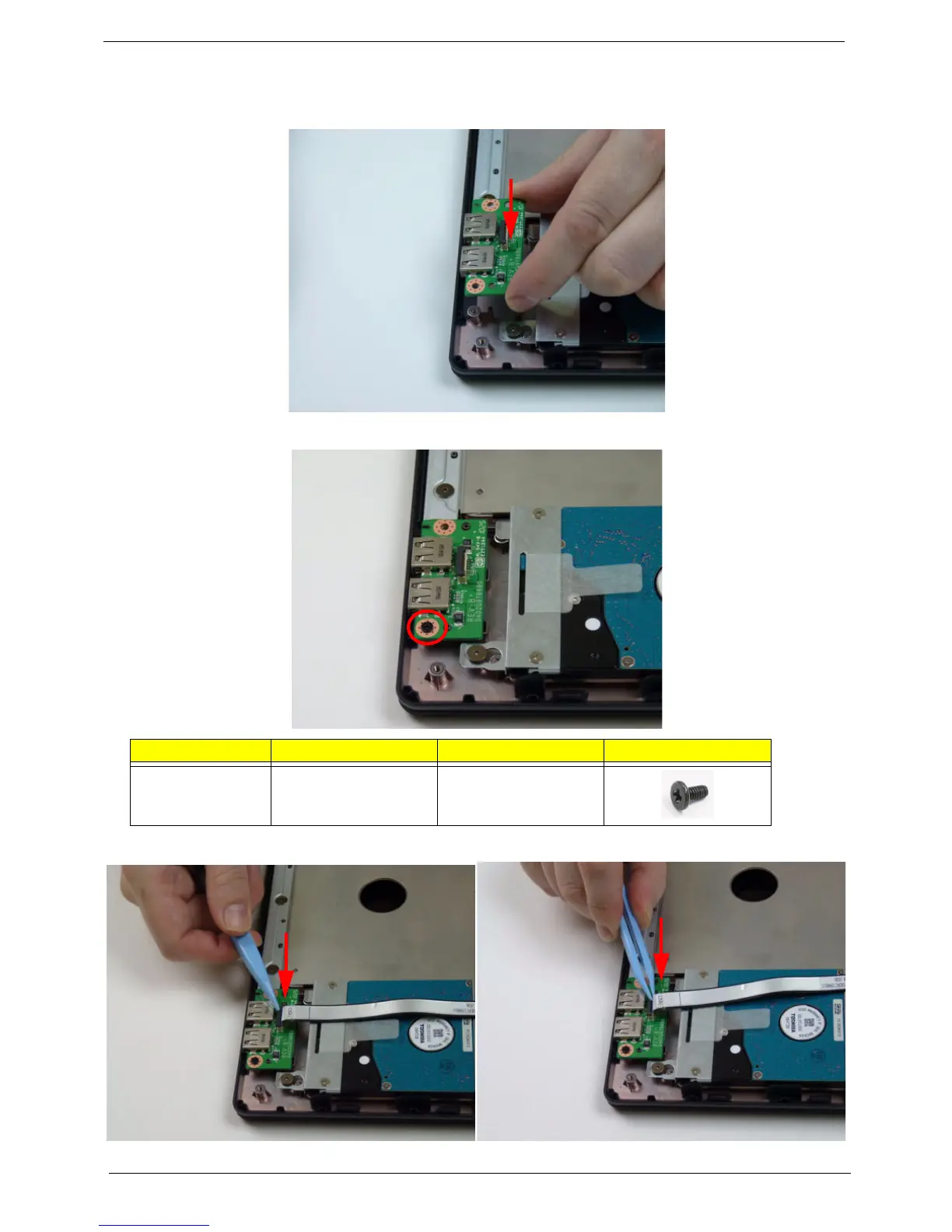

Replacing the USB Board
1. Place the USB board onto the chassis.
2. Replace one (1) screw to secure the USB board.
3. Connect and lock the USB FFC to the USB board. Repeat for the mainboard connector.
Step Size Quantity Screw Type
USB Board
Assembly
M2.5*4.0 1
