110 Chapter 3

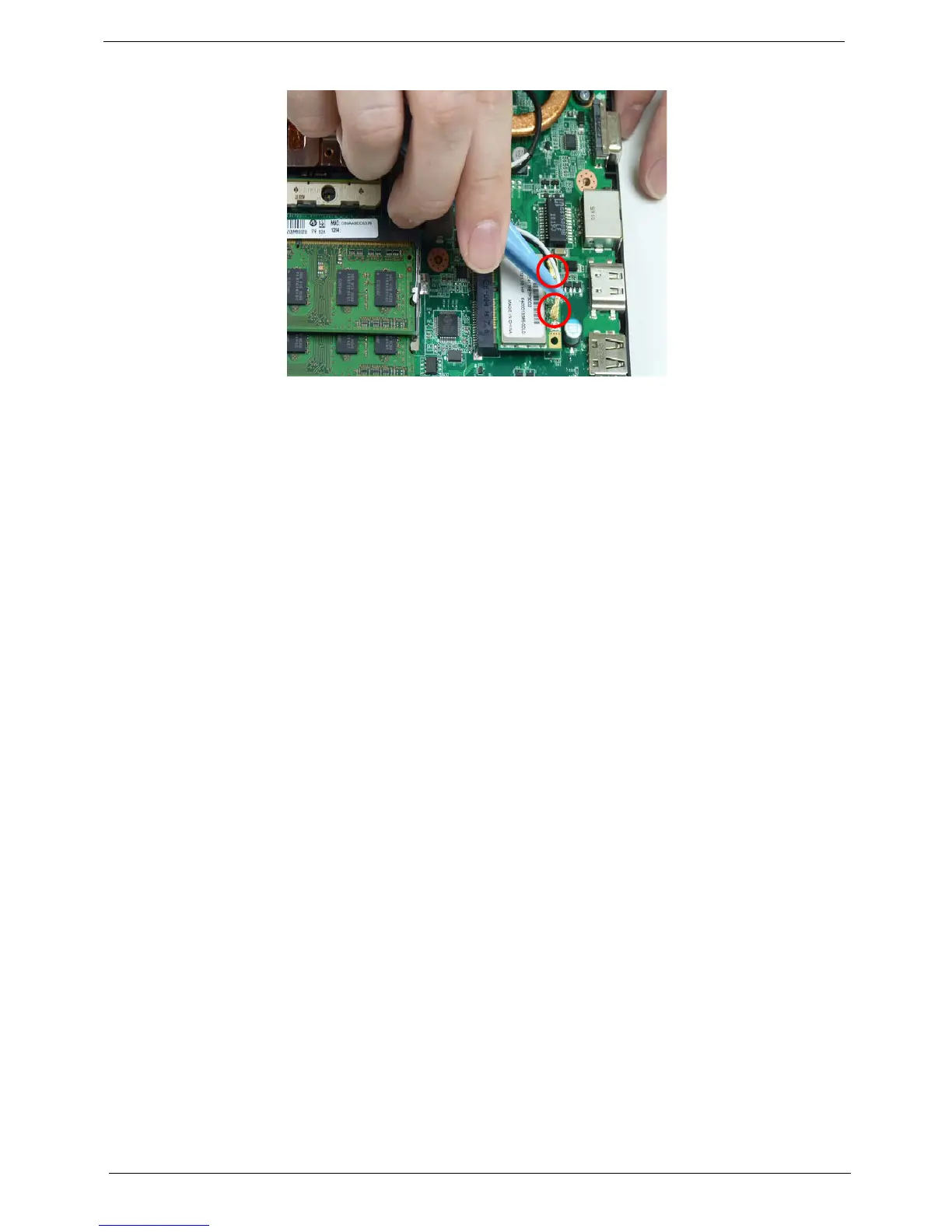

3. Connect the two (2) antenna cables to the WLAN board as shown.
NOTE: Cable placement is as follows: black (Main) to connector J1, white (AUX) to connector J2.
