138 Chapter 5

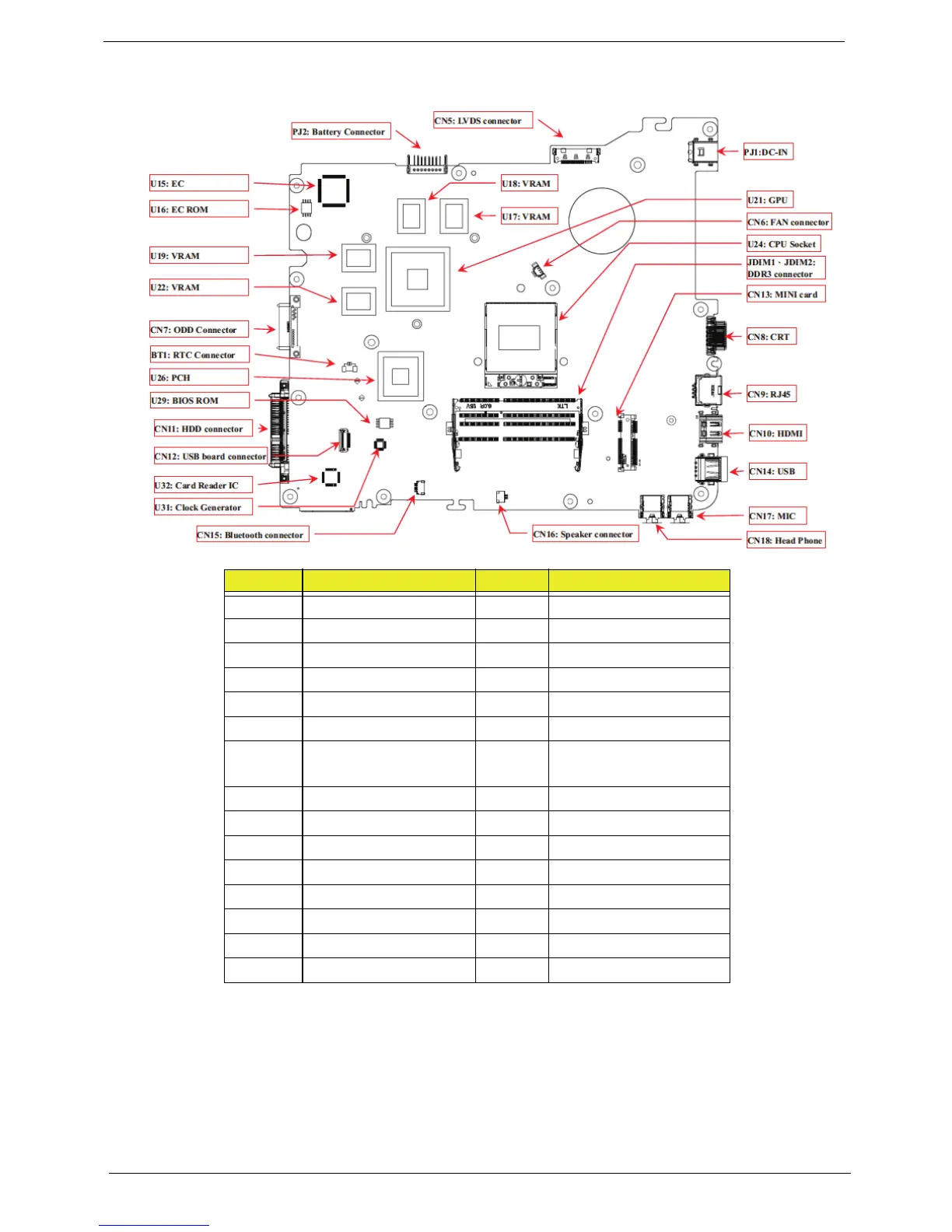

Bottom View
Item Description Item Description
U15 EC CN17 MIC
U16 EC ROM CN14 USB
U19 VRAM CN10 HDMI
U22 VRAM CN9 RJ45
CN7 ODD Connector CN8 CRT
BT1 RTC Connector CN13 MINI card
U26 PCH JDIM1/
JDIM2
DDR3 connector
U29 BIOS ROM U24 CPU socket
CN11 HDD connector CN6 FAN connector
CN12 USB board connector U21 GPU
U32 Card Reader IC PJ1 DC-IN
U31 Clock Generator U18 VRAM
CN15 Bluetooth connector U17 VRAM
CN16 Speaker connector CN5 LVDS connector
CN18 Head phone PJ2 Battery connector
