eMachines E732 - Disassembly Overview

56 Chapter 3
Disassembly Overview
1. See “Removing the Lower Cover” on page 56.

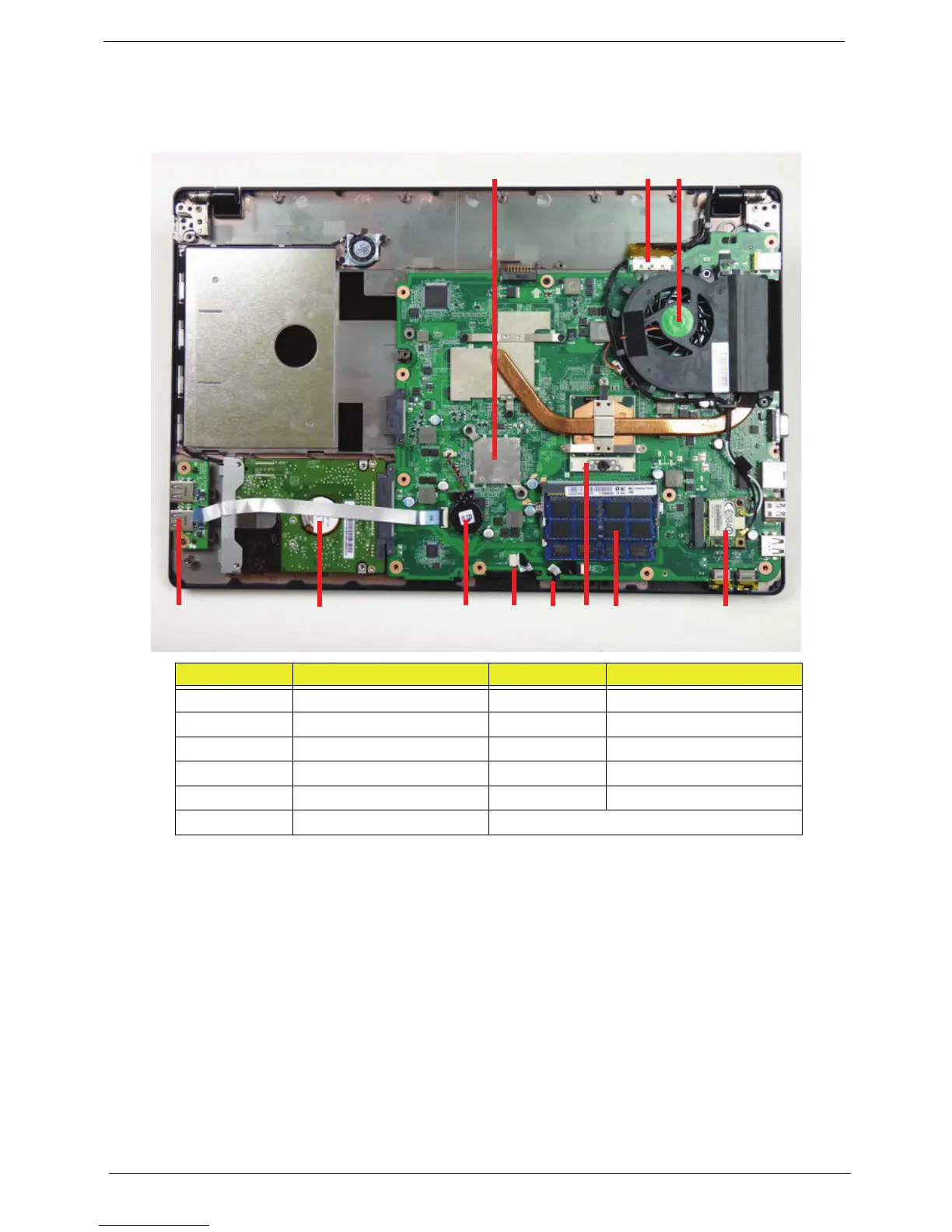

2. This section is an overview of the major components of the main unit.
Item Description Item Description
1 VGA heatsink 7 Speaker cable
2 LVDS cable 8 Bluetooth cable
3 Thermal module 9 RTC battery
4 WLAN module 10 HDD
5 DIMM module(s) 11 USB module
6CPU
