Chapter 3 59

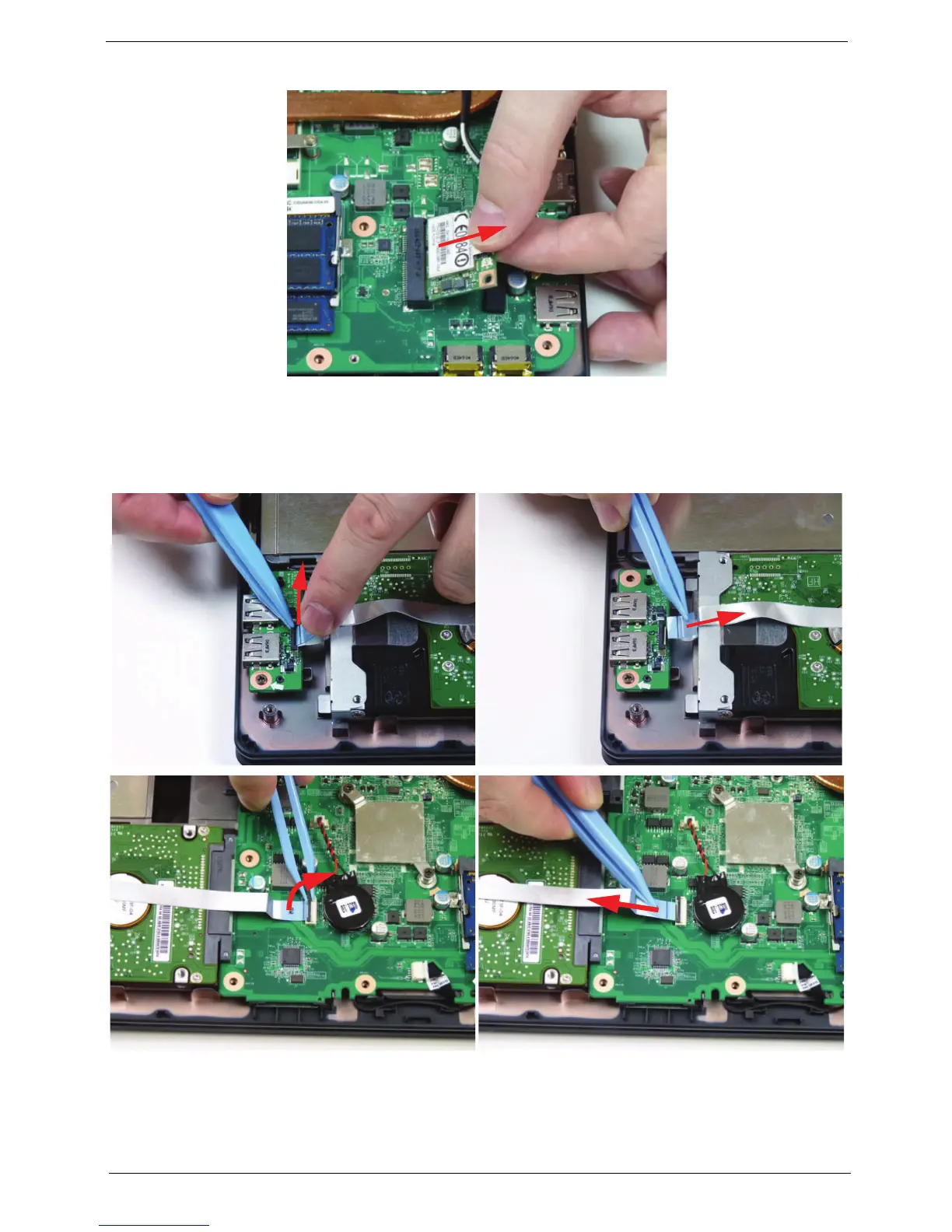

4. Detach and remove the WLAN module from the WLAN socket.
Removing the USB Board
1. See “Disassembly Overview” on page 58.
2. Unlock and disconnect the USB FFC from the USB board. Repeat for the mainboard connector.
