80 Chapter 3
Removing the LVDS Cable
1. See “Removing the LCD Panel” on page 80.

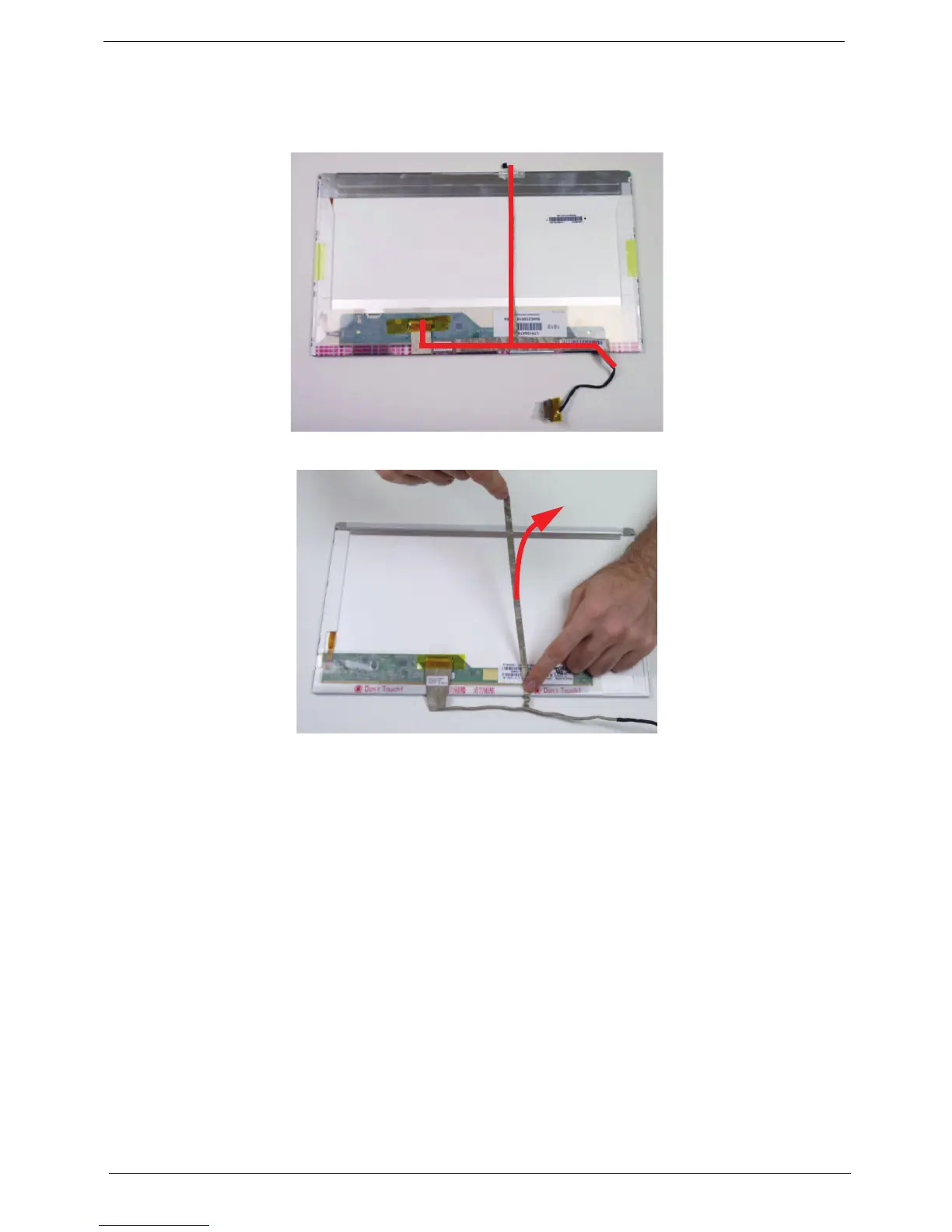

2. Locate the LVDS cable on the LCD panel.
3. Detach the CCD cable from the back of the LCD panel.
