EMC Connectrix B Series DS-4900B Version 5.1 Hardware Reference Manual
Power Supply Replacement
Power supply replacement
Power supply replacement should be performed by the EMC
Customer Service Representative.
Note: Customer servicing of the DS-4900B could result in the voiding of the
warranty or service agreement.
The DS-4900B switch has two power supplies, as displayed in
Figure 5-1. The Fabric OS identifies the power supplies from right to
left on the nonport side as Power supply #1 (on the right) and Power
supply #2 (on the left).

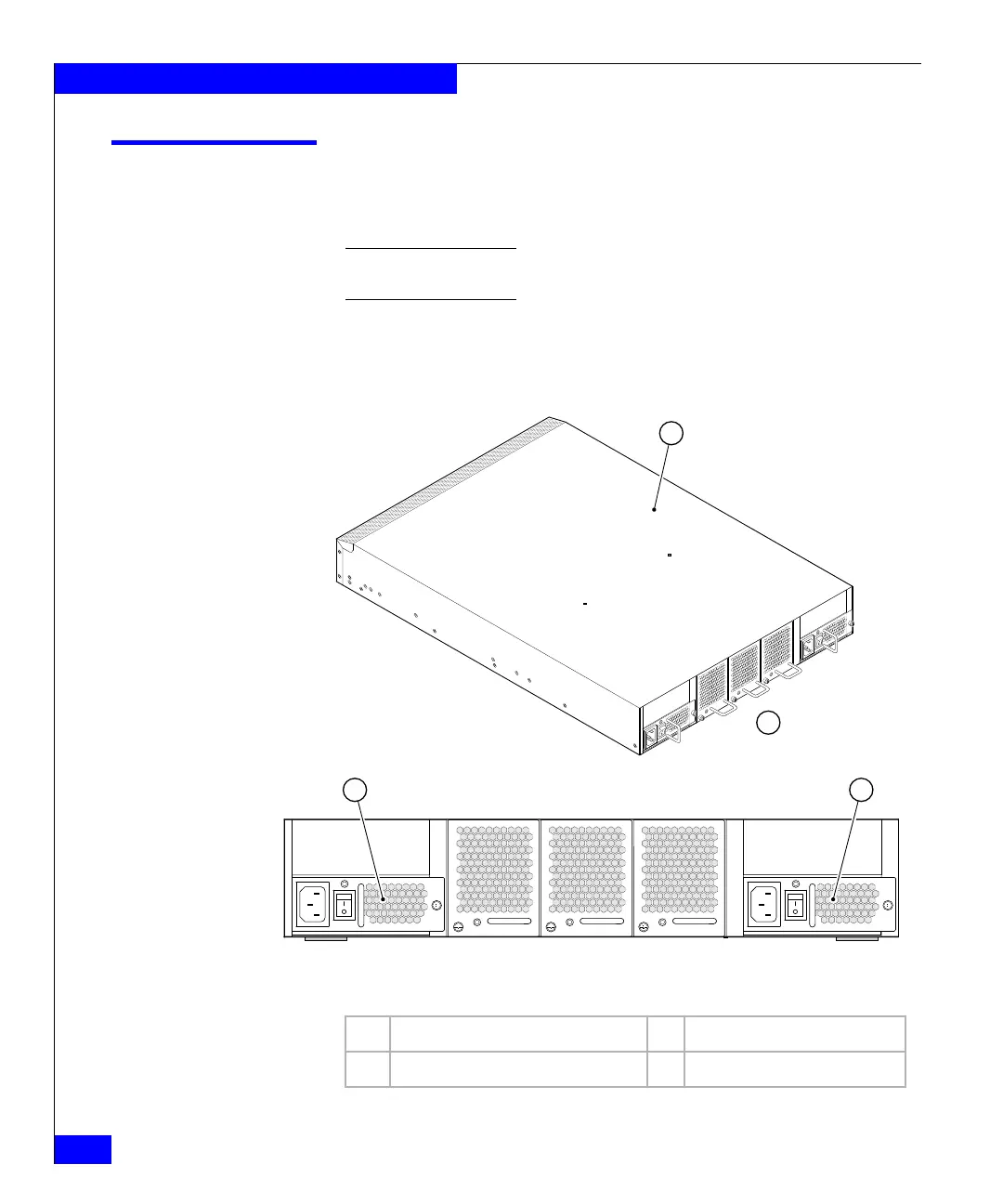

Figure 5-1 DS-4900B power supplies on the nonport side
1 DS-4900B switch 3 Power Supply #1
2 Nonport side 4 Power Supply #2
Scale: 1/8" = 1"
Scale:
5/16" = 1"
4
2
1
3
