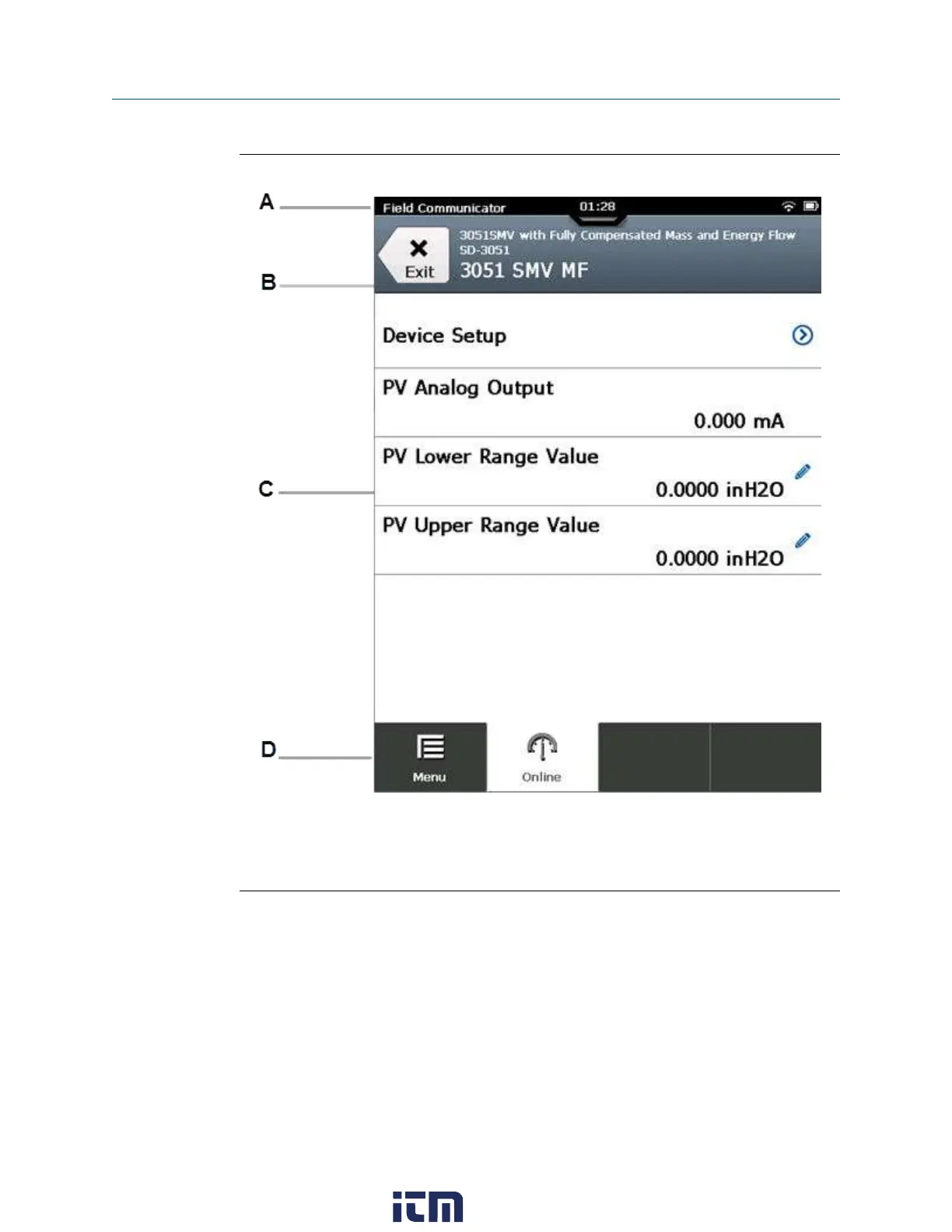

Figure 3-4: Sections of a device screen
A. Status bar
B. Application title bar
C. Device menu
D. Application bar
Status bar
Lets you access the settings for the Trex unit and switch to other applications.
Application title bar
Displays the type of device the Trex unit is connected to, the device tag (short tag or long
tag), and the menu title (Online). If you tap the application title bar, a menu is displayed.
Depending on the type of device, the menu lets you view the HART short/long tag or more
information about the device description, including the manufacturer, device type, device
revision, and device description revision. A Back or Exit button is also displayed.
User Guide Field Communicator application
September 2021
User Guide 63
