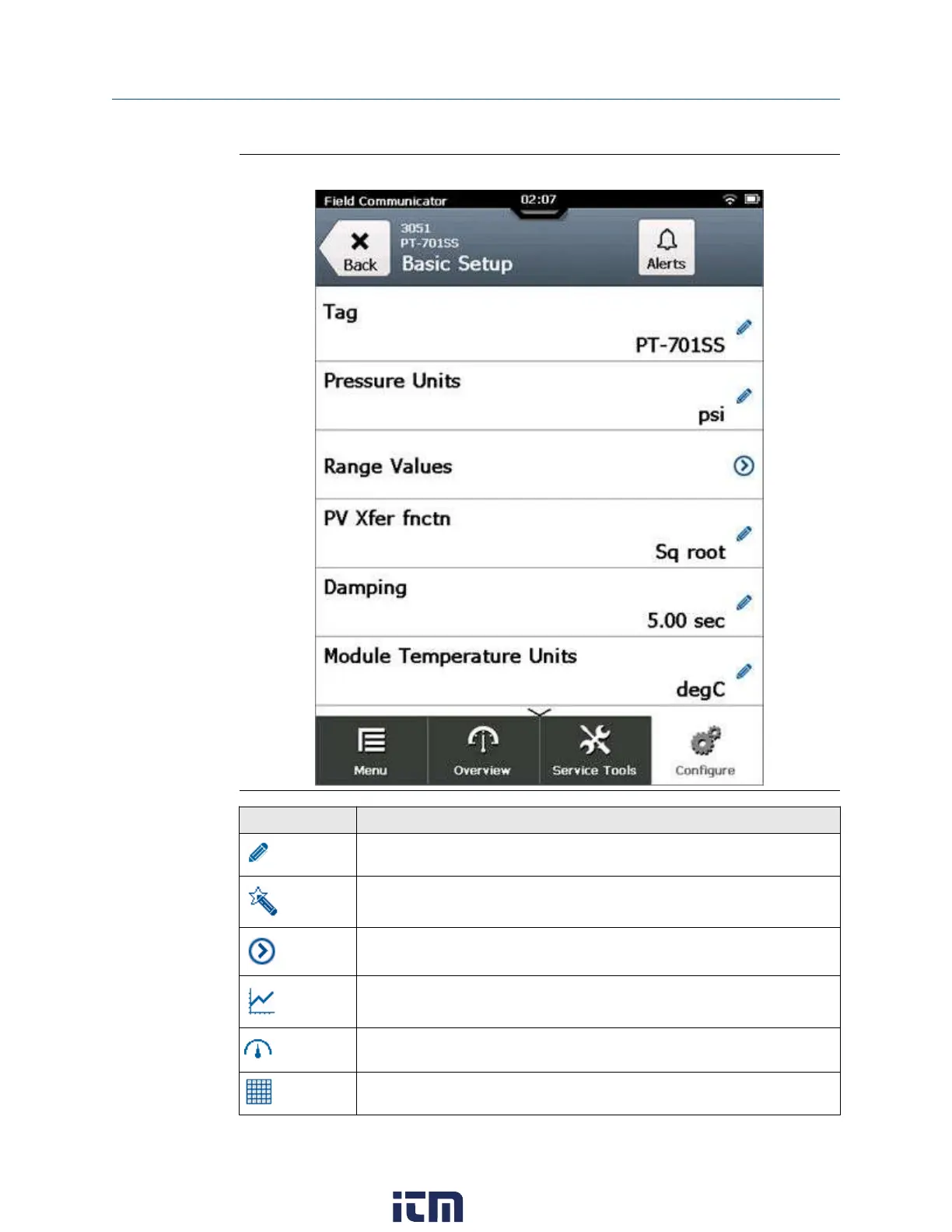

Figure 3-8: Device menu with icons
Icon Description
The option is a parameter you can edit, such as the device tag.
The option is a device method, such as a loop test.
The option has a submenu with additional options.
The option is a graph or chart. Charts display a graphic view of variables as they
occur over time.
The option is a gauge chart. A gauge chart formats device data into a view
similar to an analog car speedometer and plots device data varying with time.
The option is a grid.
Field Communicator application User Guide
September 2021
