October 2019
Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1
114
Section 13: Parts List and Drawings
Parts List and Drawings

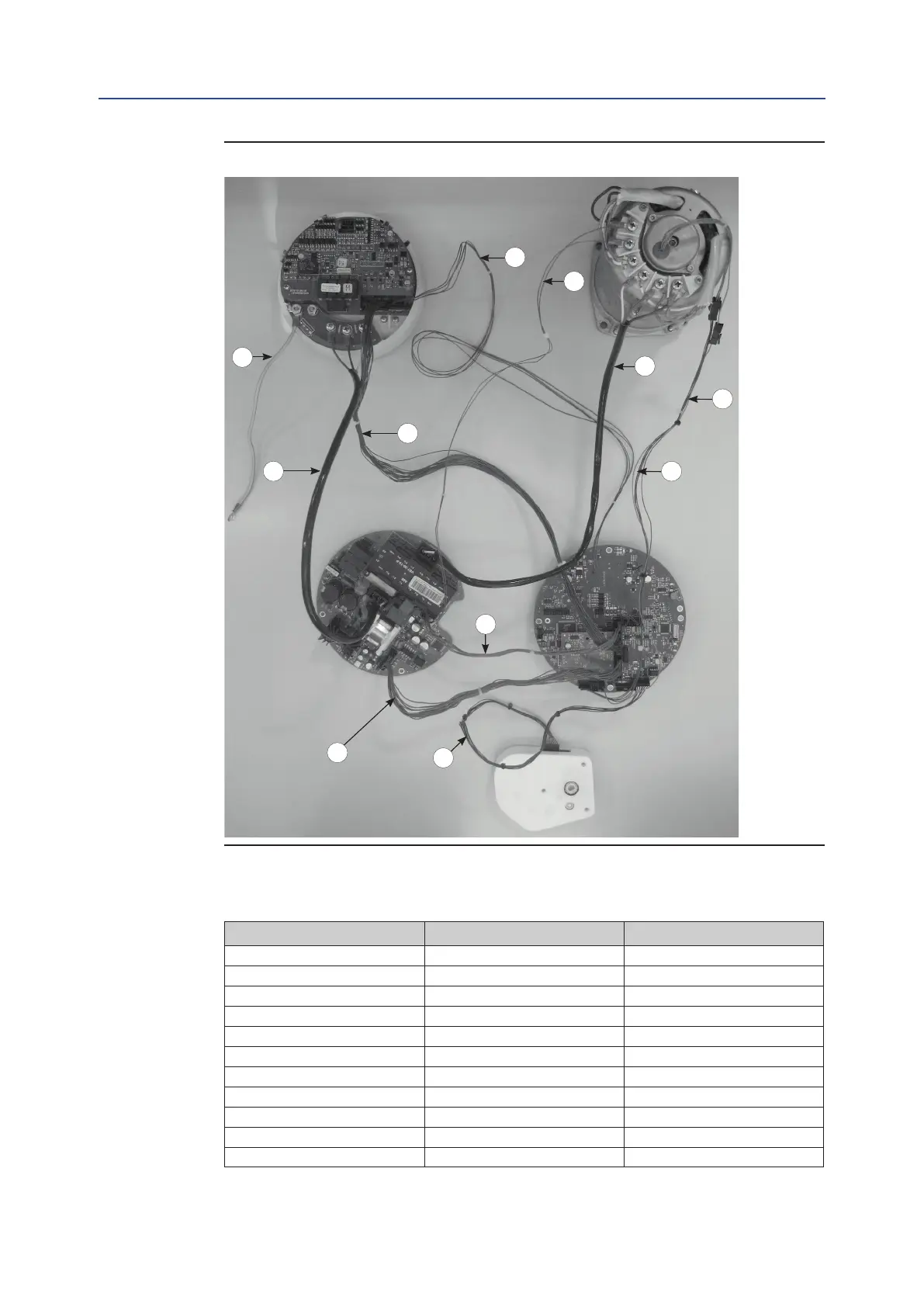

Figure 96 Wiring Loom and Cables Identification
10
3
2
7
8
9
1
6
5
5.1
4
Table 29. Wiring Loom and Cables Identification
Item Cable Type Description
1 CAB0100 I/O remote cable
2 CAB0150 Remote control supply cable
3 CAB0160 Inlet power cable
4 CAB0270 Motor power cable
5 CAB0350 Speed sensor cable
5.1 CAB0354 Speed sensor cable
6 CAB0280 Thermostat cable
7 CAB0300 Absolute Encoder cable
8 CAB0200 Internal controls cable
9 CAB0250 Contact controls cable
10 CAB0170 Earth Wire
To Next Page
