• Chord Speeds of Sound Bar Graph - a visual comparison between the calculated
speeds of sound for each chord.
• Gain/Performance Bar Graph - provides either a visual comparison of the average of
the upstream and downstream gains for each chord or a visual comparison of the
average of the upstream and downstream performance for each chord.
• Signal to Noise Bar Graph - provides a visual comparison between the signal to noise
ratio for each chord direction.
• Meter Status Alarms - provides a visual indication of the meter’s status.
• Gas Comp - this dialog shows the gas composition that can be used by the AGA8 or
AGA10 gas calculations.
• Baseline - this dialog shows the meter’s flow characteristics in comparison to limits
defined for the Continuous Flow Analysis features. This dialog is only available for
four path meters that support a baseline and a valid Continuous Flow Analysis key.
• Run time - displays how long the monitor screen has been collecting data.
• Meter Time - the time displayed is the time from the Ultrasonic meter.
Note
If the time displayed has a yellow background, that is an indication that the meter’s time is
more than 10 minutes apart from the PC’s time.
• Meter Data List - displays read-only data selected from the drop-down list.
• Chart - the chart utility displays the data collected for the value selected from the
Chart drop-down list.
Refer to Table 2-1 for error resolutions and Table 2-2 for meter maintenance hardware
diagnostics.

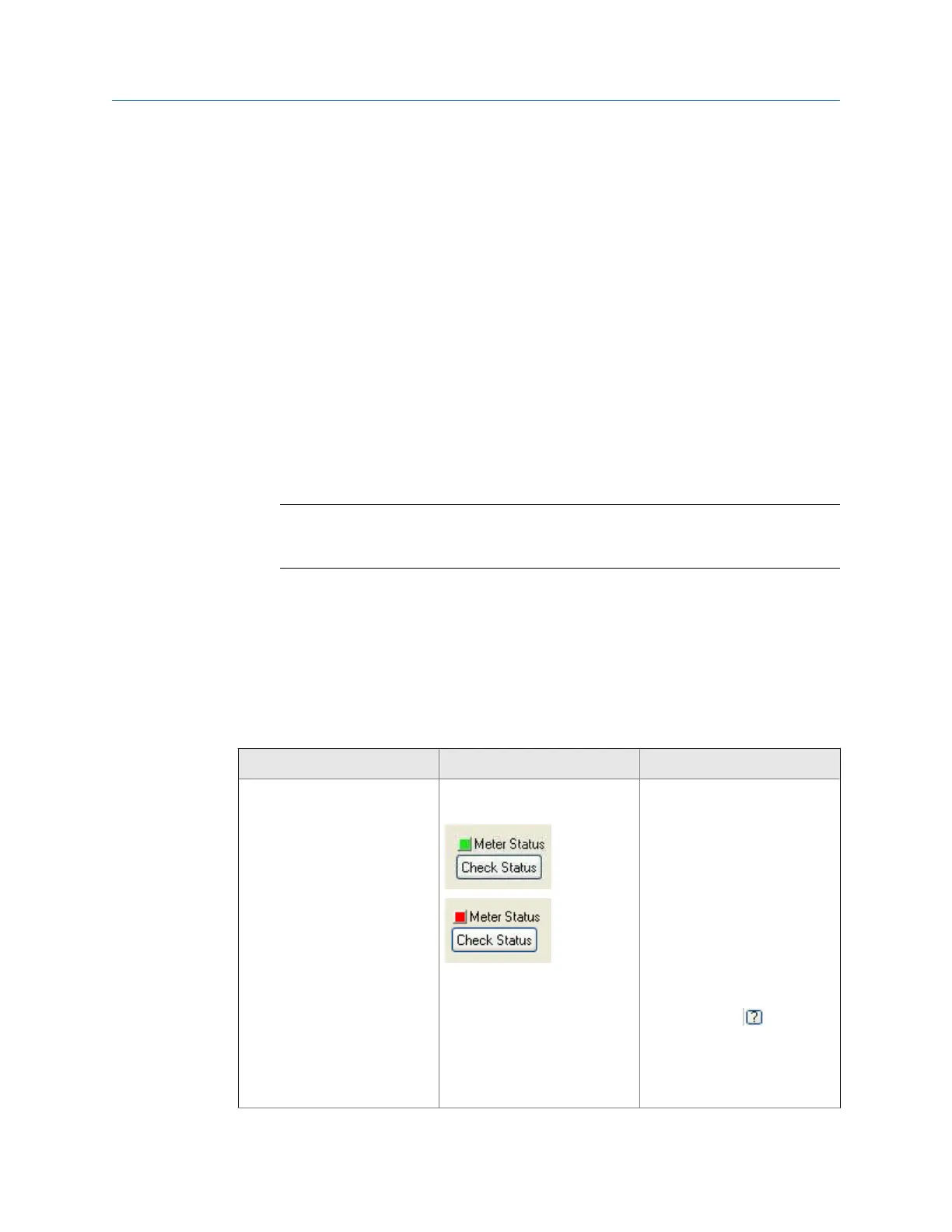

MaintenanceTable 2-2:
Daniel MeterLink utility Diagnostics Action(s)
Meter Monitor (Summary) view • Check Status for active
alarms
• Meter Status LED is green if
there are no active alarms.
This indicates the meter is
measuring flow and operat-
ing within the calibrated
parameters.
• Meter Status LED is red.
This indicates an active
alarm. Resolve and ac-
knowledge active alarms as
displayed on the Status
Summary page. Click the
Help button beside the
alarm description to display
information about the
alarm and recommended
actions to resolve the issue.
Troubleshooting
28 Gas Ultrasonic Flow Meters
