4 Removing Mark III Electronics
4.1 Procedure to remove the Mark III Electronics
Procedure
1. Having obtained all the information related to the set-up of the 3400 Series
electronics configuration and communications, all the components related to the
electronics can now be physically removed from the meter. Unscrew all wiring from
the Field Termination Board. It may be helpful to label the wires to make it easier to
connect the 3410 Series electronics.
2. Remove any conduit and wiring attached to all six conduit ports.
3. Remove any ground wire attached to the ground lug on the outside of the upper
electronics housing. At this point there should be no wires connected to the upper
electronics housing.

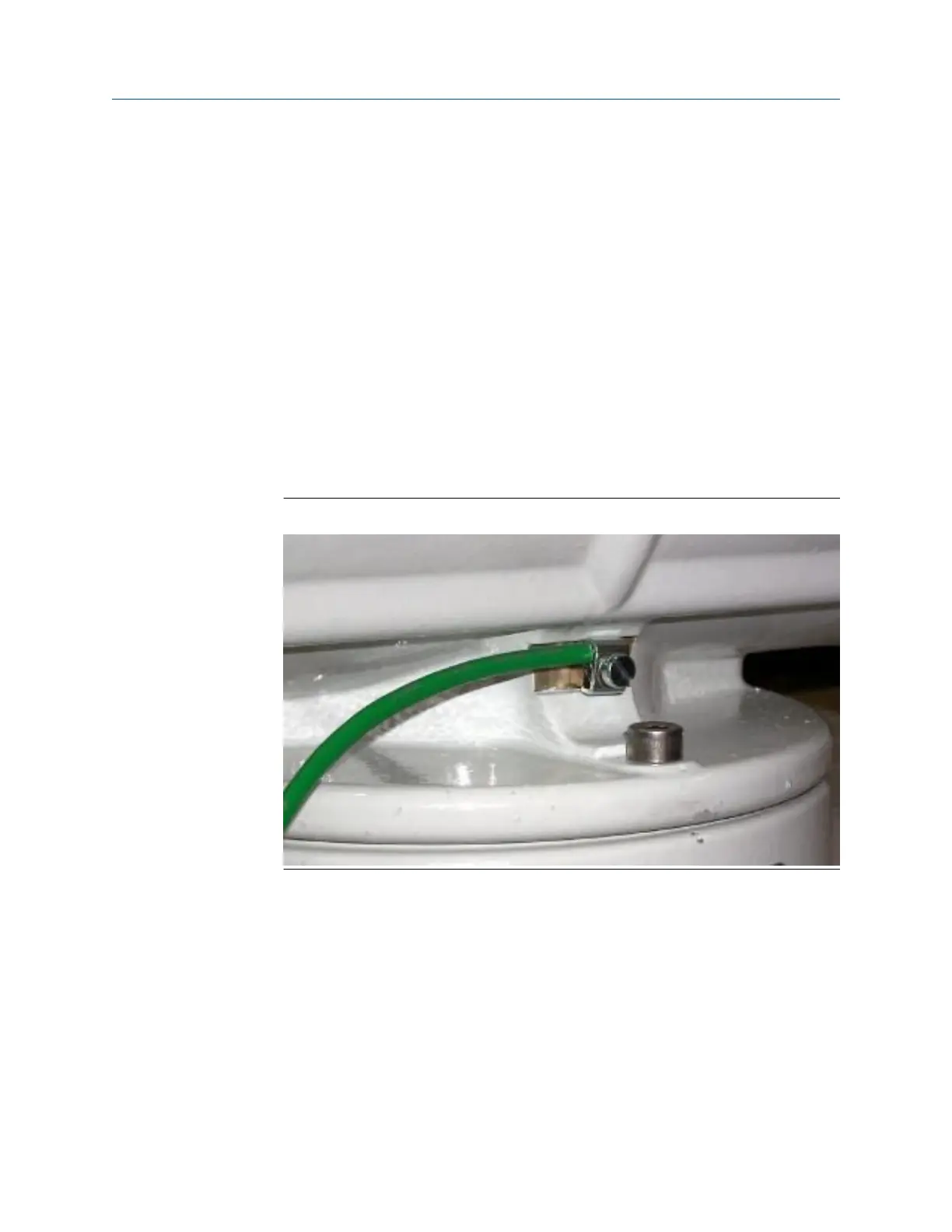

Figure 4-1: Ground wire removed
4. Use the 6mm Allen wrench (supplied with kit) to remove the two bolts holding the
base enclosure.
Upgrade kit instructions Removing Mark III Electronics
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 23
