C 3410 Communication and Output
settings
C.1 3410 Wiring and I/O
Refer to the Daniel 3410 Series Ultrasonic Gas Flow Meter Installation Manual (P/N
3-9000-759) for more wiring details.

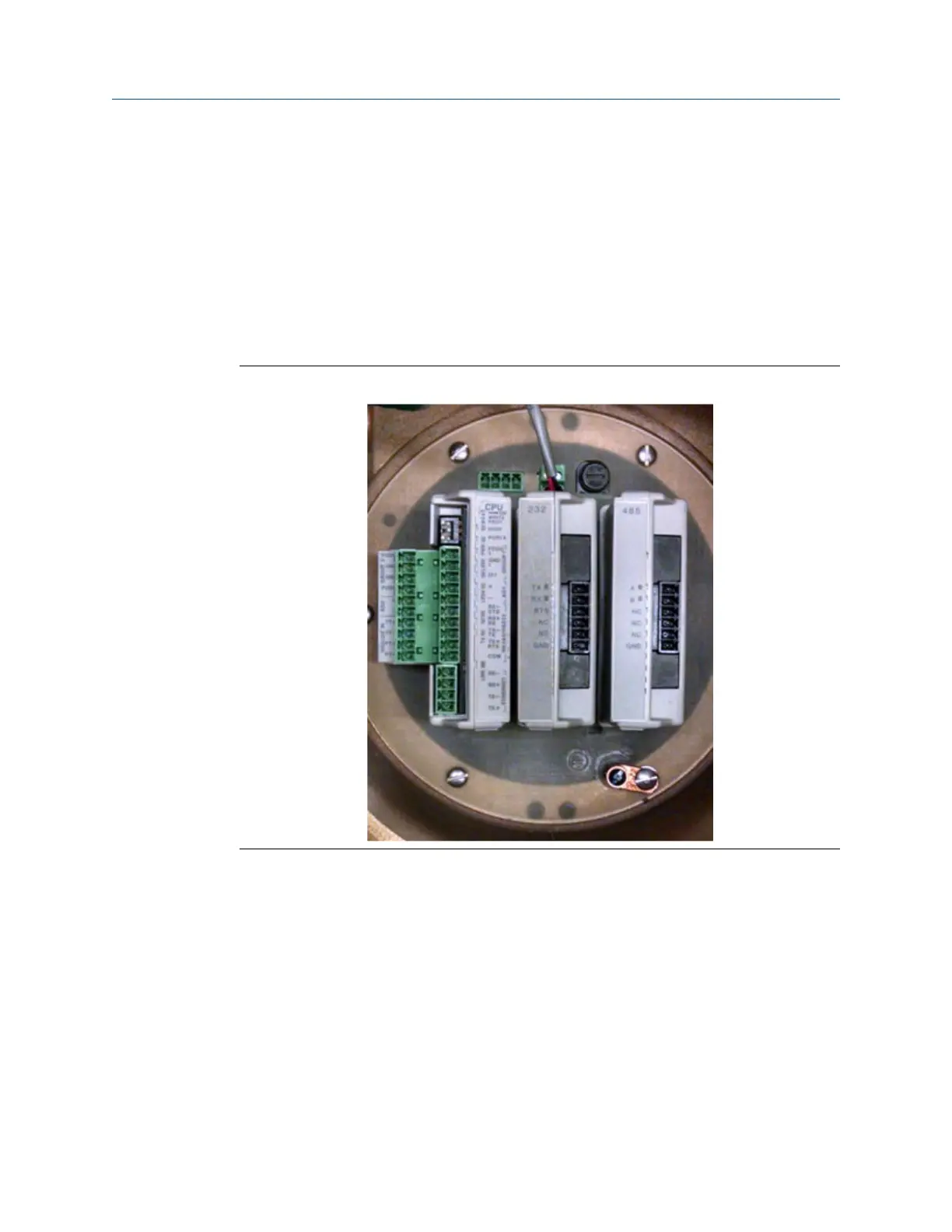

Figure C-1: 3410 Upper electronics with Optional I/O Modules
Upgrade kit instructions 3410 Communication and Output settings
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 75
