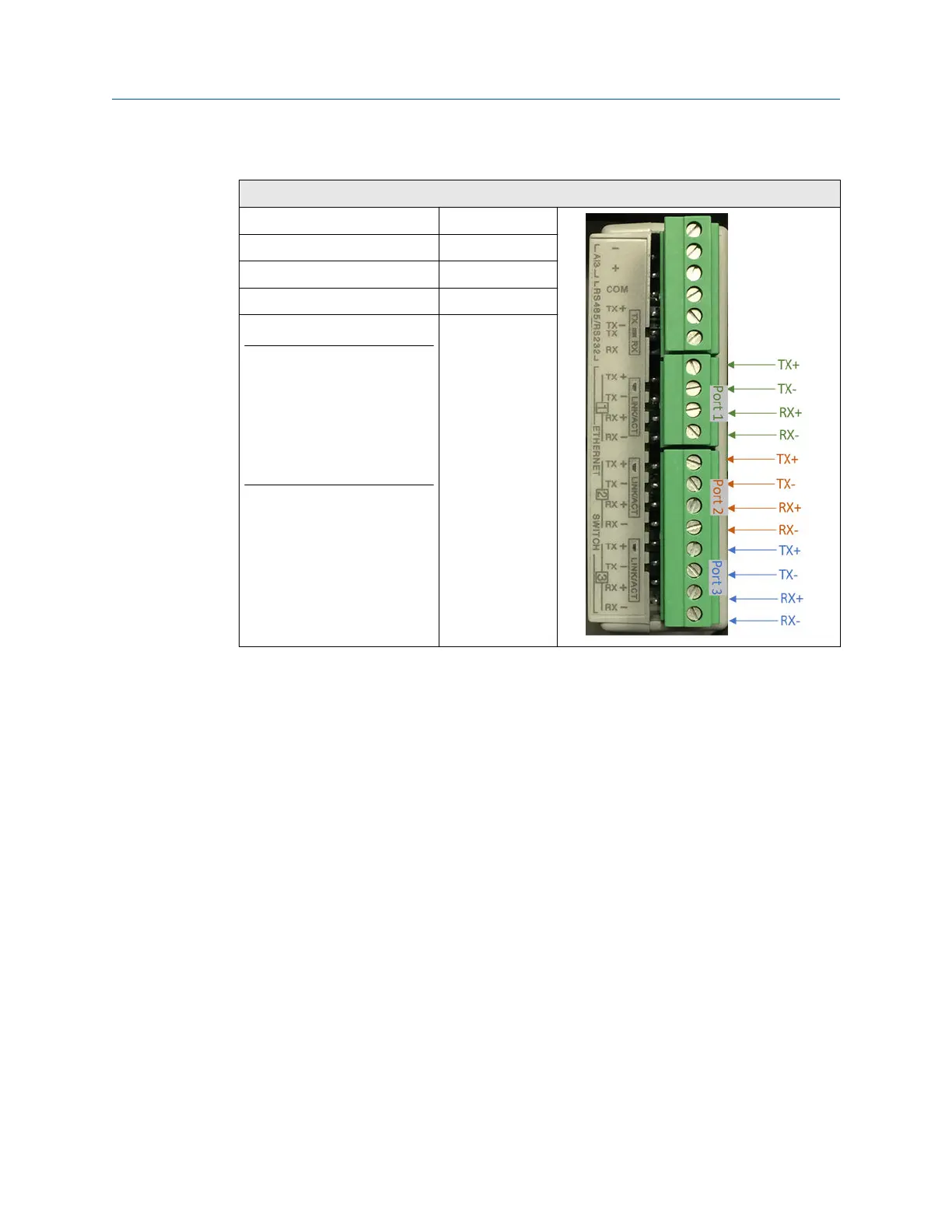

Table C-2: Ethernet communication
Ethernet
Wire color CPU/EXP
White w/Green Stripe TX+
Solid green TX-
White w/Orange stripe RX+
Solid orange
Note
Wiring colors for TX+/TX- and
RX+/RX- can be switched as
ethernet ports will
automatically detect crossover
vs. straight connection.
Connections shown are
straight through cable.
RX-
Ethernet communication
Use ethernet cable, Daniel P/N 1-360-01-596, to connect the PC to the meter.
A DIN 41612 48-pin connector is the interface from the CPU Module to the Backplane
(male end located on the back of the Backplane Board).
C.3 Input and output connections
The Daniel 3410 Series Ultrasonic Flow Meter provides the Analog inputs for pressure and
temperature, Analog output 2 and frequency and digital outputs on the CPU Module lower
terminal block.
3410 Communication and Output settings Upgrade kit instructions
July 2019 P/N 3-9000-784
80 3410 Series Electronics Upgrade kit instructions
