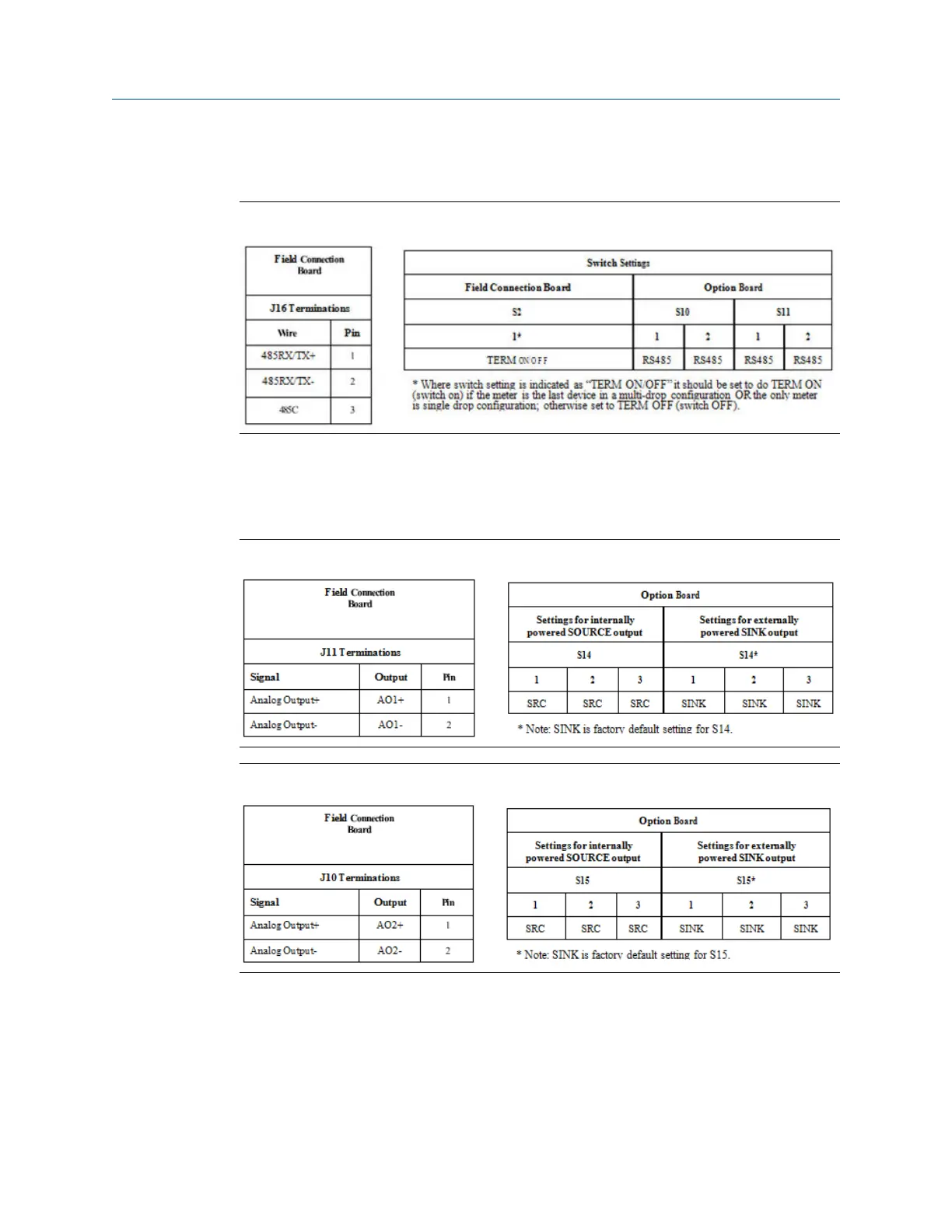

A.8 Mark III RS-485 Half Duplex
Figure A-17: Port C settings
A.9 Mark III Series 100 plus HART option board (if
installed)
Figure A-18: Analog output 1
Figure A-19: Analog output 2 (HART capable)
Upgrade kit instructions Mark III Wiring I/O and switch settings
P/N 3-9000-784 July 2019
