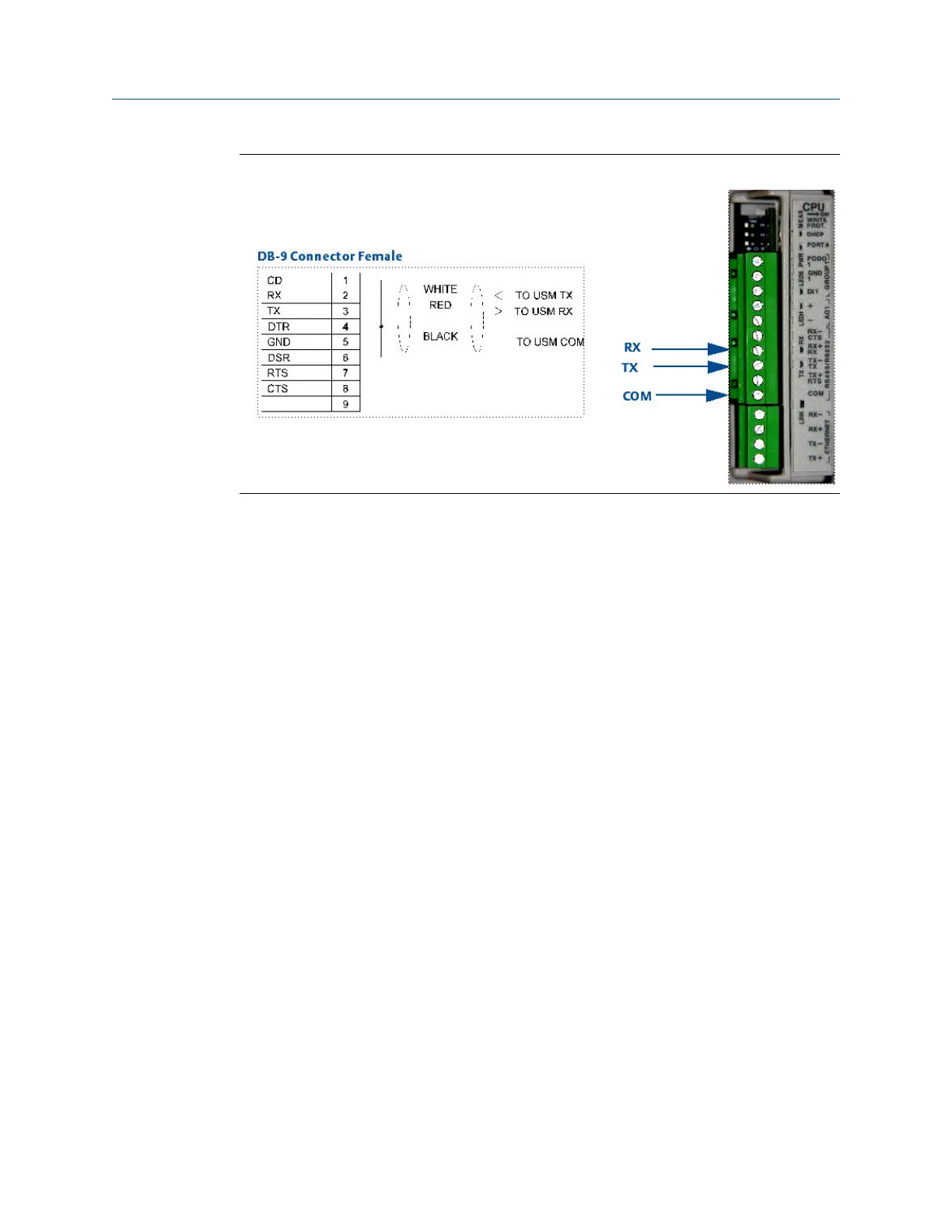

Figure C-9: PC to meter serial connection wiring
C.5 Analog input settings
The Daniel 3410 Series Ultrasonic Flow Meter has the capability to sample analog
temperature (Analog Input 1) and pressure (Analog Input 2) with 4-20 mA signals. These
analog input signals are configured to sink. The two independent analog input circuits are
configured for conventional 4-20 mA service. Also, 24VDC isolated power supply
connection is provided for an external power source. Refer to the System Wiring Diagram
in Appendix D.
C.6 Analog output settings
The Daniel 3410 Series Ultrasonic Flow Meter provides two 4-20 mA analog output signals
that are software configurable for either sink or source current. Refer to the System Wiring
Diagram in Appendix D.
Full HART
®
functionality is provided so that any commercially available HART
®
transmitter
which meets the specifications of the HART
®
Communications Foundation can be
connected to a Daniel3410 Series Ultrasonic Flow Meter.
C.7 Digital Input
The Daniel 3410 Series Ultrasonic Flow Meter provides one digital input that can be used
as a general purpose input. The digital input must be configured via the Daniel MeterLink
™
Tools|Edit/Compare Configuration screen.
3410 Communication and Output settings Upgrade kit instructions
July 2019 P/N 3-9000-784
86 3410 Series Electronics Upgrade kit instructions
