A Mark III Wiring I/O and switch
settings
Use the wiring I/O and switch settings in this appendix to configure the 3410 Series
electronics parameters.

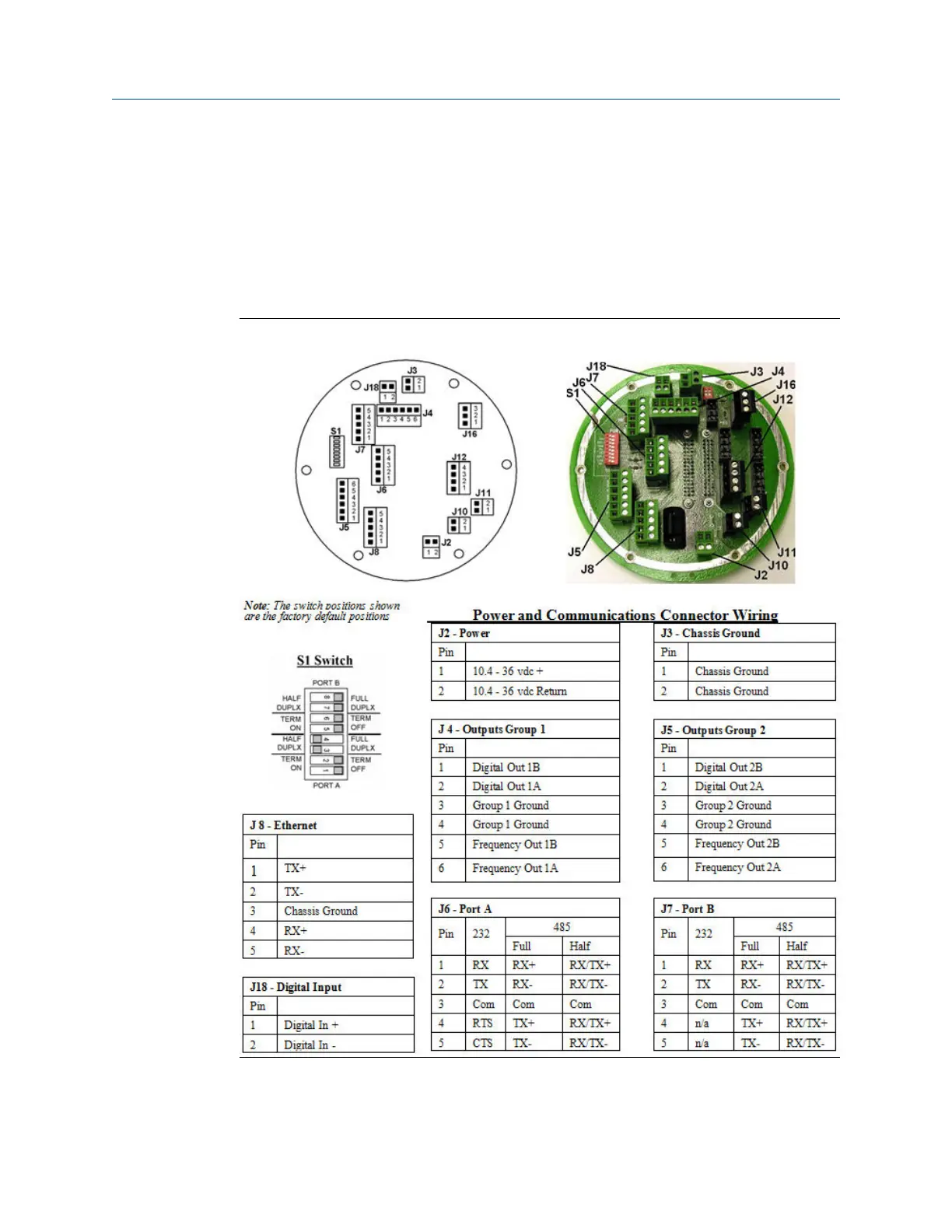

Figure A-1: Mark III Field Connection Board Switches and Connectors
Upgrade kit instructions Mark III Wiring I/O and switch settings
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 61
