Emerson Daniel Ultrasonic 3410 Series

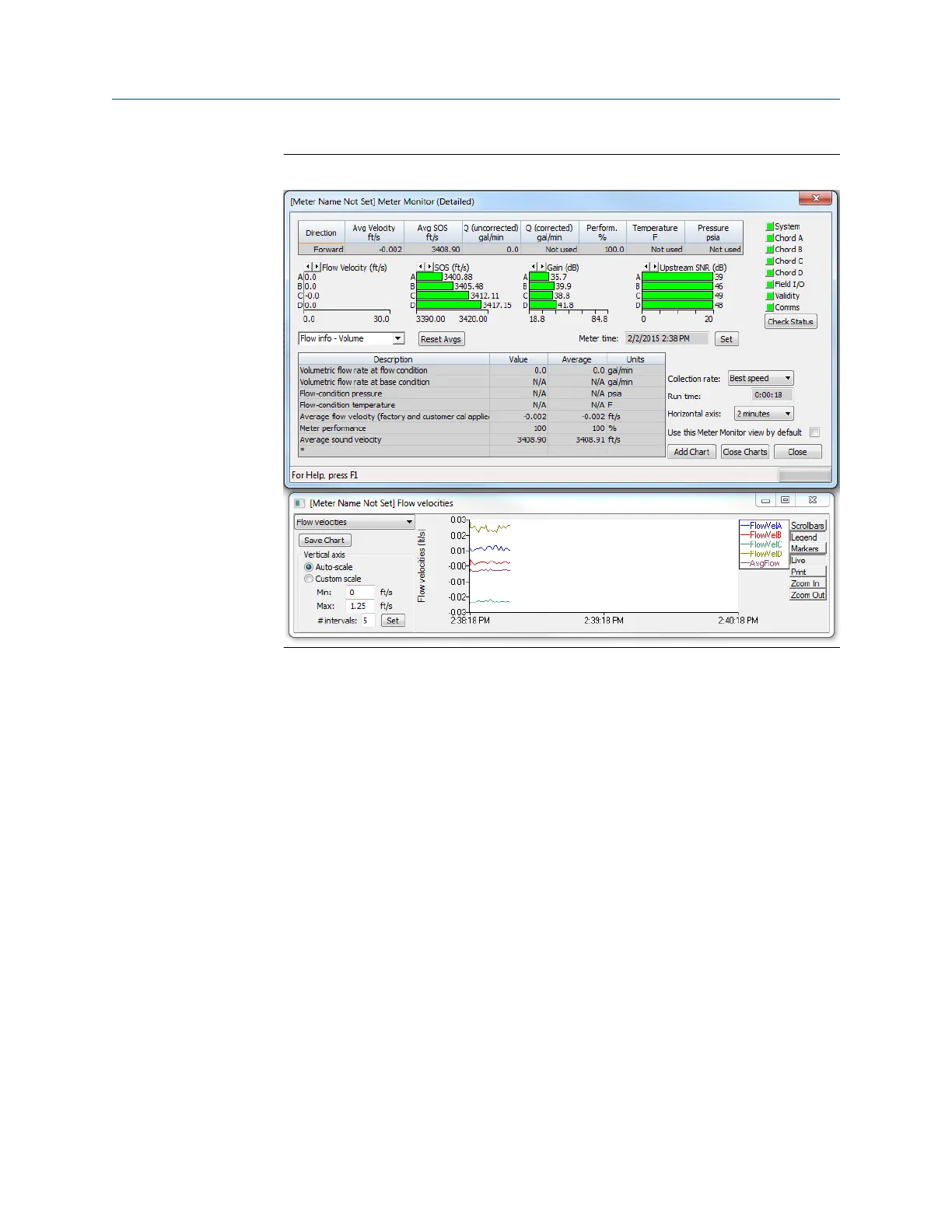

Figure 6-9: Meter monitor dialog
6.4 Configure the meter using the Field Setup
Wizard
6.4.1 Configuring the meter using the Field Setup Wizard
Procedure
1. Use the Meter|Field Setup Wizard menu path to access the Field Setup
Wizard Startup dialog.
a) Verify that all settings (options) are correct (e.g., temperature, pressure,
meter connections and meter outputs).
b) In the Meter name field insert a name for the meter (this name displays on
Daniel MeterLink
™
main window and the Maintenance logs and Reports files).
c) Ensure the 3410 Series Electronics digital outputs are configured
appropriately. The 3410 Series Electronics also supports, and may be
configured for, the AGA8 Detailed Method.
Configure the 3410 Series Electronics Upgrade kit instructions
July 2019 P/N 3-9000-784
56 3410 Series Electronics Upgrade kit instructions
