All data points shown in yellow have been modified from the 3400
configuration.

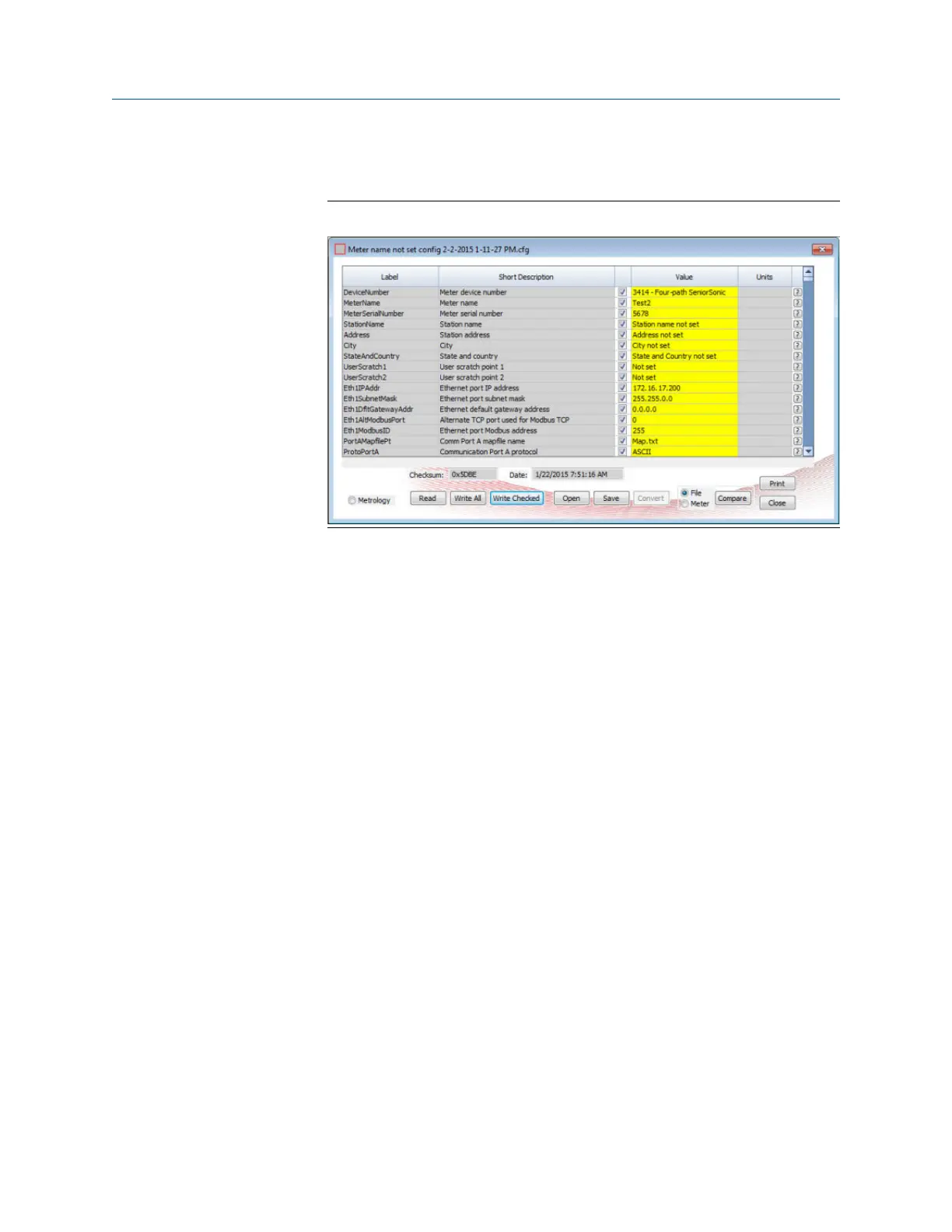

Figure 6-8: Converted configuration with highlighted changes
d) Click Write Checked to write the converted configuration to the meter (see
Figure 6-8). If an error occurs, Daniel MeterLink
™
will display a message
indicating the nature of the problem. Manually edit the parameter(s) with
errors to successfully complete the download.
e) Click Write Checked again after modifying the parameter(s). Repeat this
until the write occurs with no errors.
f) Save the 3400 Series electronics configuration file to your PC.
g) With the converted configuration still displayed, from the Edit/Compare
Configuration dialog, click the Meter radio button, located next to the
Compare button (see Figure 6-8).
h) Compare the file to verify that this saved configuration matches the meter
configuration. If an error occurs, go back to the beginning of the 2.a and try
again until no errors are reported.
3. Use the Meter|Monitor menu path to display the Monitor window and verify that
the meter is operating correctly.
