c) Click Convert (see Figure 6-6). Daniel MeterLink
™
reads the 3410
configuration from the meter and modifies it with the 3400 configuration.

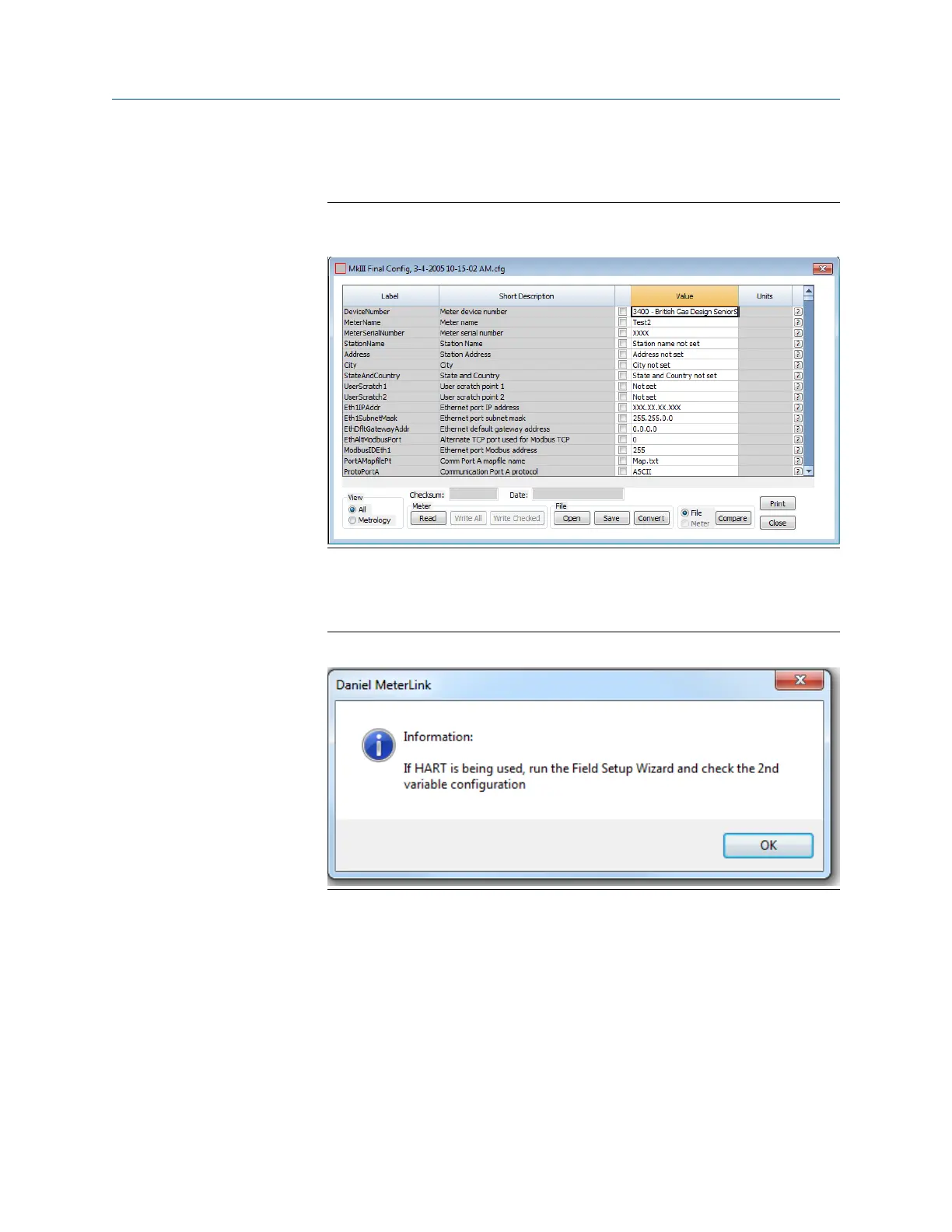

Figure 6-6: Edit/Compare configuration dialog with active Convert
button
If the meter supports HART, check the 2nd variable parameter setting using
the Field Setup Wizard|Current Outputs dialog. A reminder dialog
prompts you to set this parameter.
Figure 6-7: Hart parameter settings
For Gas ultrasonic meters, the HART Secondary Variable options are:
• Uncorrected flow rate
• Corrected flow rate
• Average flow velocity
• Average sound velocity
• Energy flow rate
• Mass flow rate
Configure the 3410 Series Electronics Upgrade kit instructions
July 2019 P/N 3-9000-784
54 3410 Series Electronics Upgrade kit instructions
