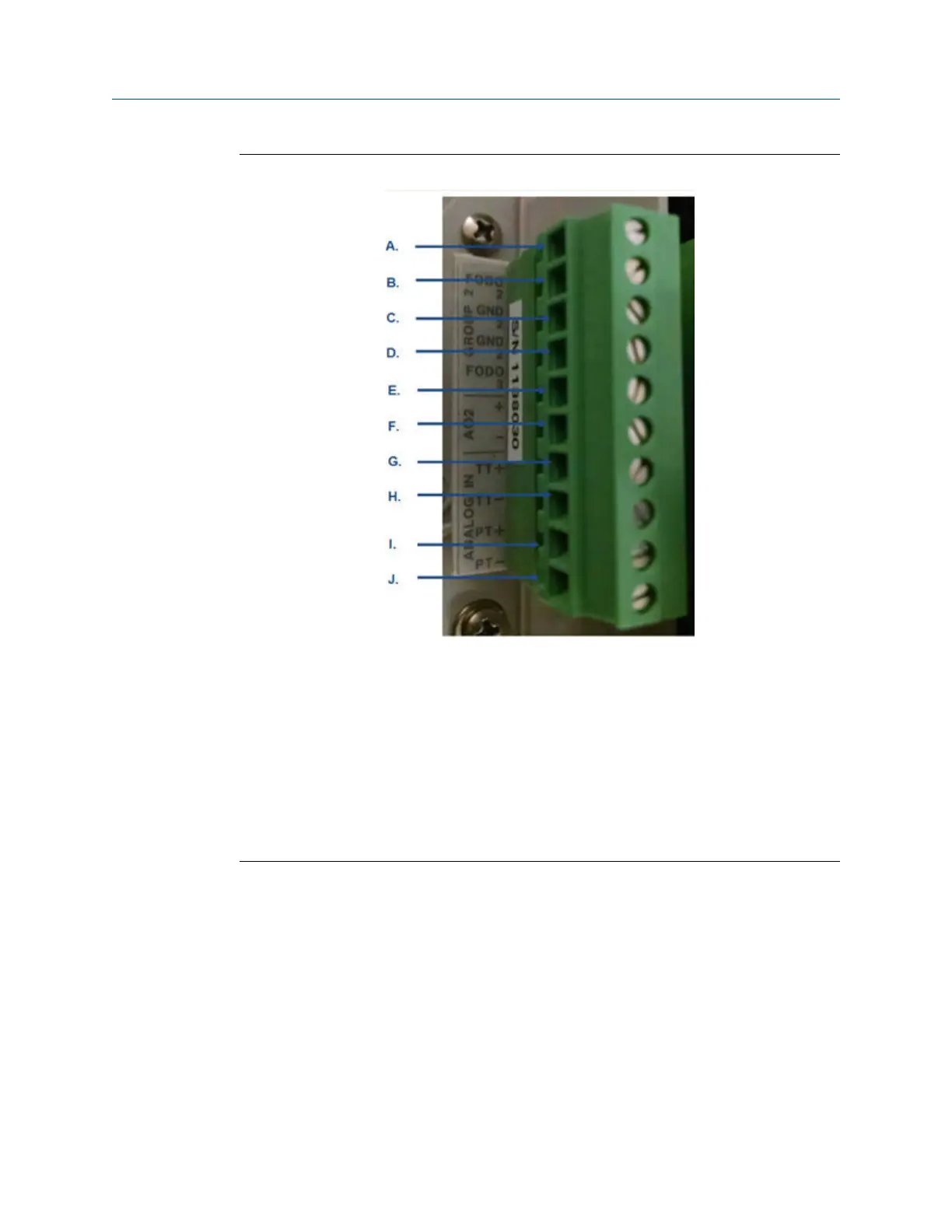

Figure C-5: CPU Module lower terminal block I/O connections
A. Frequency/Digital Output 2 (FODO 2)
B. Frequency/Digital Output 2 (FODO 2) Gnd
C. Frequency/Digital Output 2 (FODO 2) Gnd
D. Frequency/Digital Output 3 (FODO 3)
E. Analog Output 2 + (4-20mA output)
F. Analog Output 2 - (4-20mA output)
G. Analog In (Temperature) +
H. Analog In (Temperature) -
I. Analog In (Pressure) +
J. Analog In (Pressure) -
Possible configurations for Frequency and Digital Outputs are shown in the following
figure.
Upgrade kit instructions 3410 Communication and Output settings
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 81
