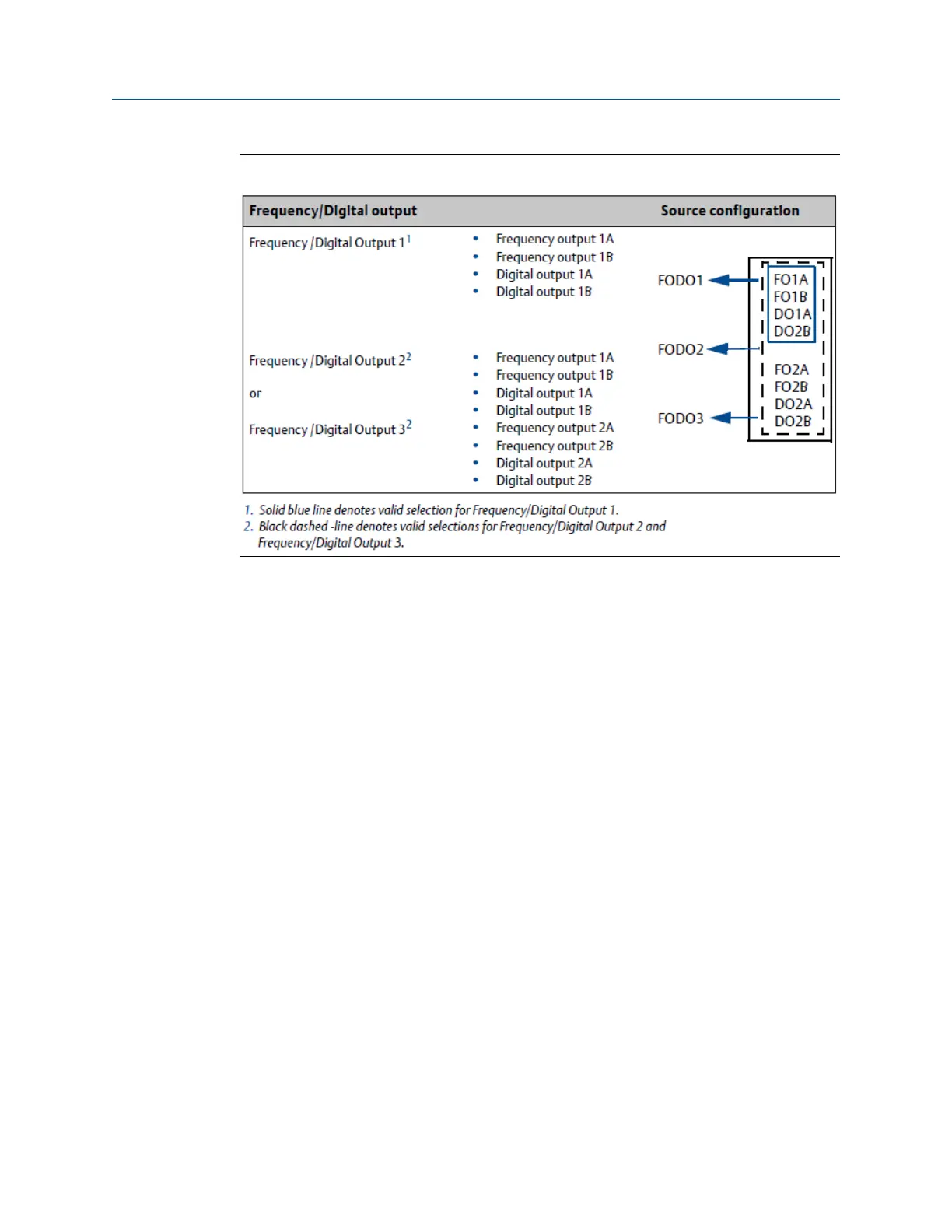

Figure C-6: Frequency/Digital Output
Output for FODO1 and Digital Output1 (Group 1 on the CPU Module upper terminal block)
share a common ground and have 50V isolation. FODO2 and FODO3 (Group 2 on the CPU
Module lower terminal block) share a common ground and have 50V isolation. This allows
an output to be connected to a different flow computer. The outputs are opto-isolated
from the CPU Module and have a withstand voltage of at least 500V rms dielectric.
3410 Communication and Output settings Upgrade kit instructions
July 2019 P/N 3-9000-784
82 3410 Series Electronics Upgrade kit instructions
