Emerson Daniel Ultrasonic 3410 Series

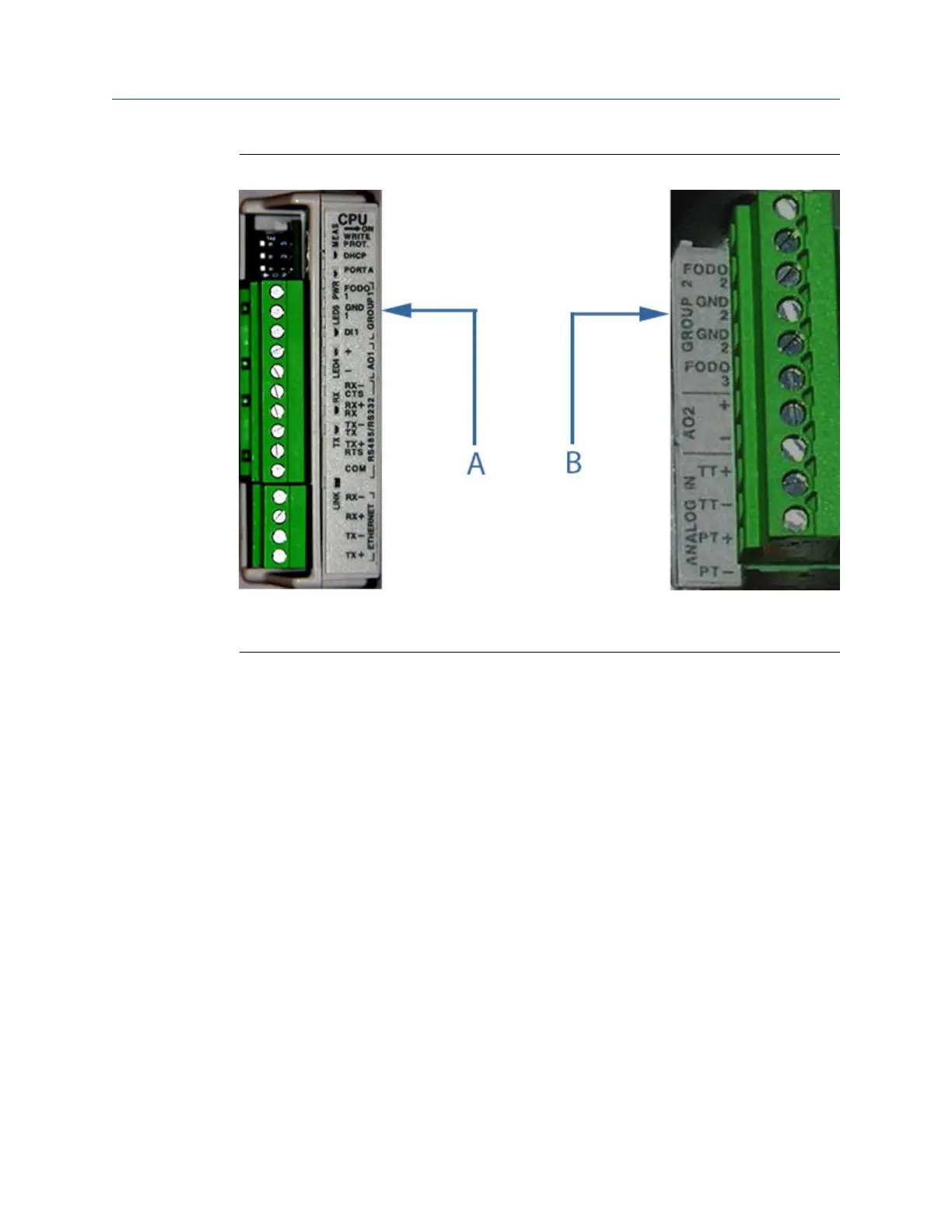

Figure C-7: CPU Module - Frequency/Digital outputs common ground - Type 2
A. FODO1 and Digital input1 - shared common ground (Group1)
B. FODO2 and FODO3 - shared common ground (Group2)
Upgrade kit instructions 3410 Communication and Output settings
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 83
