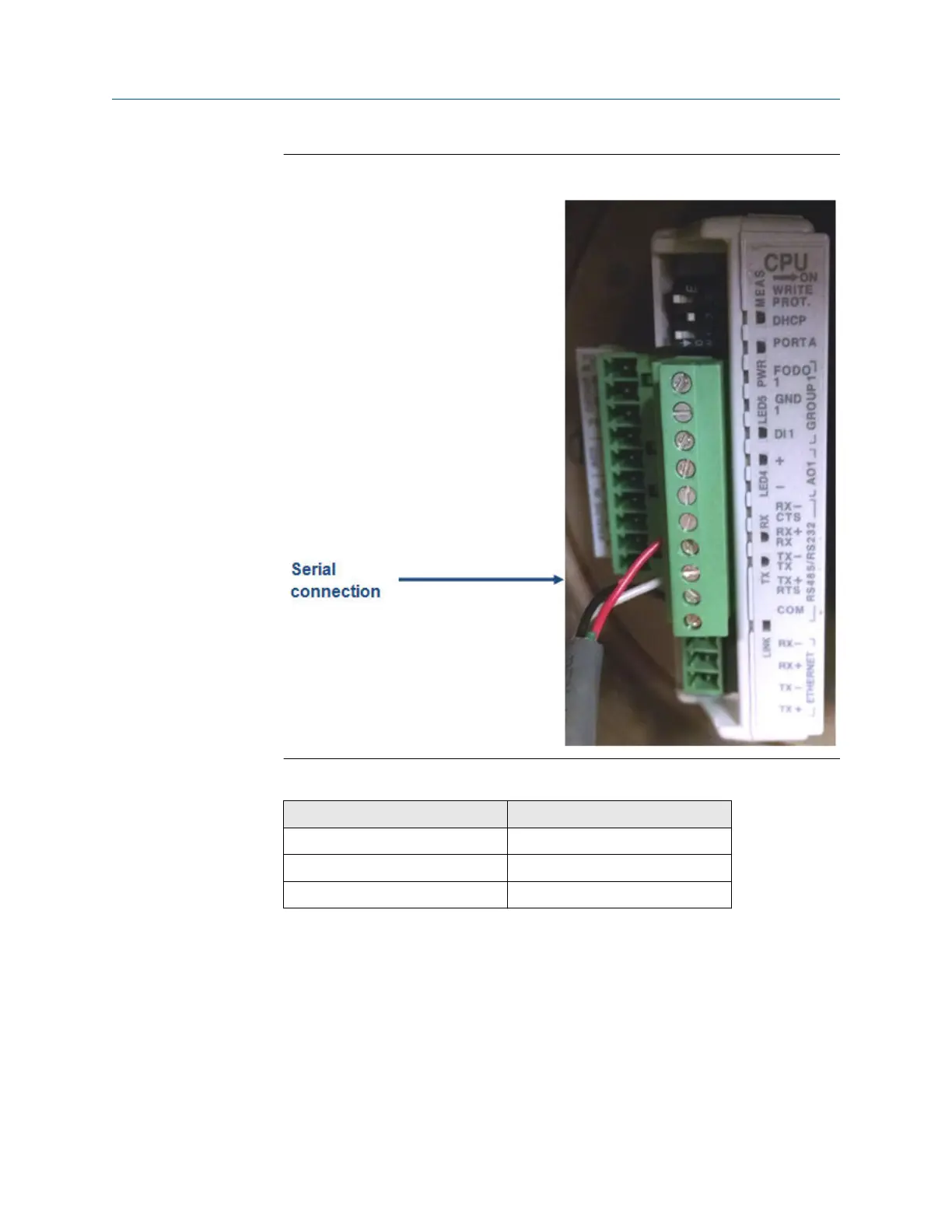

Figure 6-1: CPU RS-232 serial connection
Table 6-1: CPU RS-232/RS-485 wire colors
CPU Wire colors
R X Red
T X White
C O M Black
3. Start Daniel MeterLink
™
on the PC and create a new Meter Directory record with the
following parameters:
Upgrade kit instructions Configure the 3410 Series Electronics
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 49
