Performing a Restore Navigating Visograph Display • 21
6. The display will show Backup Transfer to USB
Complete, Remove USB and Exit. It is now safe
to remove the USB drive.
3.6 Performing a Restore
If a backup operation has been performed with a USB
drive, that same USB drive can be used to update or
restore I/O Module parameter values to the values in the
backup file.
1. From the Main Menu, use the T4/T6 keys to
arrow down to 4. Restore and press the T5 SET
key to enter the menu. A warning message will
be displayed to warn the user that performing a
restore operation will set all parameter values to
the values in the backup file they are loading.
2. Insert a USB drive with a backup file.
3. Press TS NEXT to continue.
4. The I/O Module will display that the backup file
is found and to press T8 START to begin
restoring.
5. The restore process will begin and display a
Restore In Progress message:
6. Once the Restore Is Complete message is
displayed, press T1 EXIT.

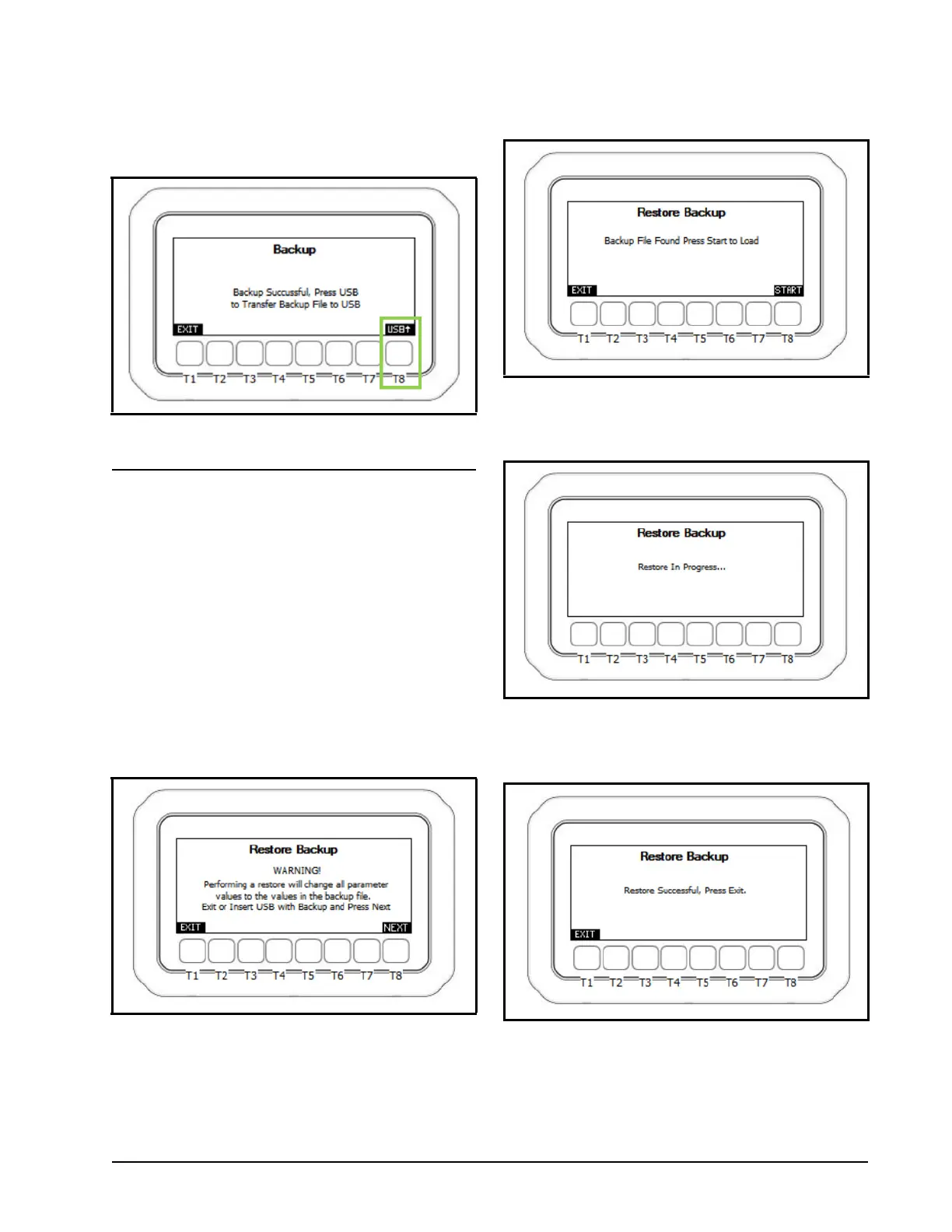

Figure 3-18 - Visograph Backup Successful
Figure 3-19 - Visograph Restore Backup
Figure 3-20 - Visograph Restore Backup - File Found
Figure 3-21 - Visograph Restore Backup - In Progress
Figure 3-22 - Visograph Restore Backup - Successful
