Configuring Analog Inputs E2E Setup and Overview • 27
14. E2E will display a list of the MS/TP devices
discovered during the scan. The number in
parenthesis is the BACnet MAC address and the
6-digit number adjacent to it is the BACnet
Device ID. Select the device you want to
commission and press
on the E2E keypad.
15. Press
again on E2E keypad and then E2E
will display BACnet Device ID is set.
16. Press the
to save and exit back to the
Network Summary screen.
17. The I/O Module device status should now change
to ONLINE in green. Allow approximately five
(5) minutes for initial communication startup and
synchronization to complete before editing
parameters.
4.2 Configuring Analog
Inputs
The I/O Module Analog Inputs are configured from the
I/O Module application in E2E. There are 10 analog inputs
available for configuration at E2E. Table 4-1 outlines the
different input setup options.

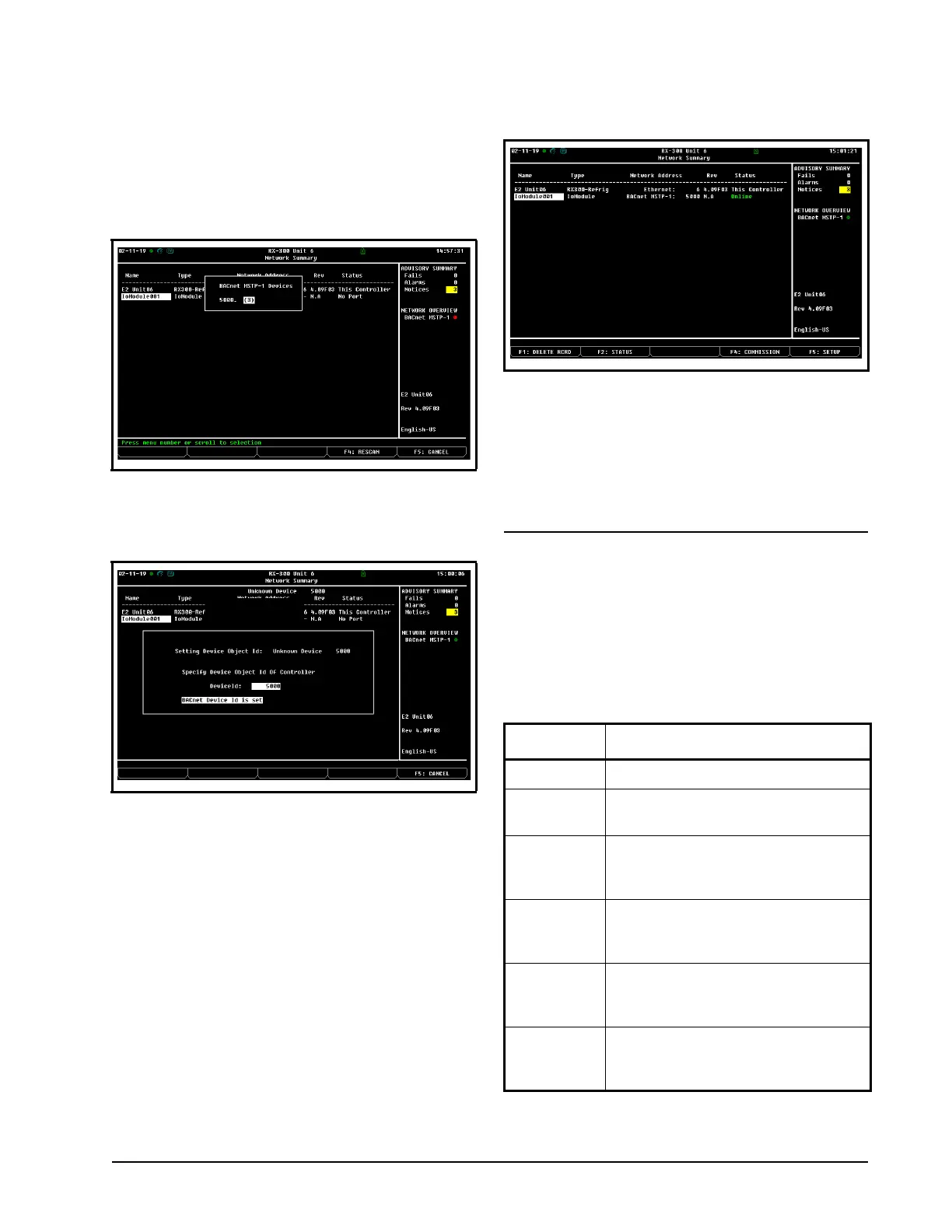

Figure 4-10 - E2E- BACnet MSTP Devices
Figure 4-11 - E2E- BACnet Device ID is Set
Figure 4-12 - E2E- Network Summary Screen
AI Setup Description
1 - Not Used Sets the input to Not Used.
2 - Emerson
Temp
Configures the input for any of Emerson’s
standard temperature sensors.
3 - Emerson
100 PSI
Configures the input for Emerson’s 100 PSI
transducer. Scaling values and engineering
units are automatically configured.
4 - Emerson
200 PSI
Configures the input for Emerson’s 200 PSI
transducer. Scaling values and engineering
units are automatically configured.
5 - Emerson
500 PSI
Configures the input for Emerson’s 500 PSI
transducer. Scaling values and engineering
units are automatically configured.
6 - Custom
Pressure
Configures the input for a user defined
pressure transducer, input scaling
parameters will become visible.
Table 4-1 - Input Setup Options
