Emerson iPro IPG215D - Configuring a Custom Pressure Transducer

28 • iPro I/O Module Installation and Operation Manual 026-1741 Rev 0
To start configuring inputs:
1. Login to E2E with username: user and password:
pass.
2. Press
+ keys at the same time to navigate
to the Network Summary screen.
3. Highlight the I/O Module device and press
 (SETUP), press  tab over to the
AI setup tab you wish to configure.
4. Press
 (LOOK UP) to select a setup
option.
4.2.1 Configuring a Custom
Pressure Transducer
To configure a custom pressure transducer, follow the
steps in the above section to select Option 6 
(Table 4-1) for custom pressure. The sensor’s input signal
will be scaled linearly with MIN SIGNAL corresponding
to the MIN EU value and MAX SIGNAL corresponding
to the MAX EU value. Once custom pressure is selected,
other configuration parameters will become visible:
NAME, MIN SIGNAL, MAX SIGNAL, MIN EU,
MAX EU and OFFSET.
MIN SIGNAL
In the MIN SIGNAL field, enter the sensor signal voltage
that will correspond to the unit value entered in the MIN
EU field.
MAX SIGNAL
In the MAX SIGNAL field, enter the sensor signal
voltage that will correspond to the unit value entered in the
MAX EU field.
7 - Dixell
NTC Temp
Configures the input for standard Dixell
NTC temperature sensor.
8 - Dixell PTC
Temp
Configures the input for standard Dixell
NTC temperature sensor.
9 - Linear
Configures the input for a custom scaled
linear input. Scaling values and signal type
parameters will become visible.

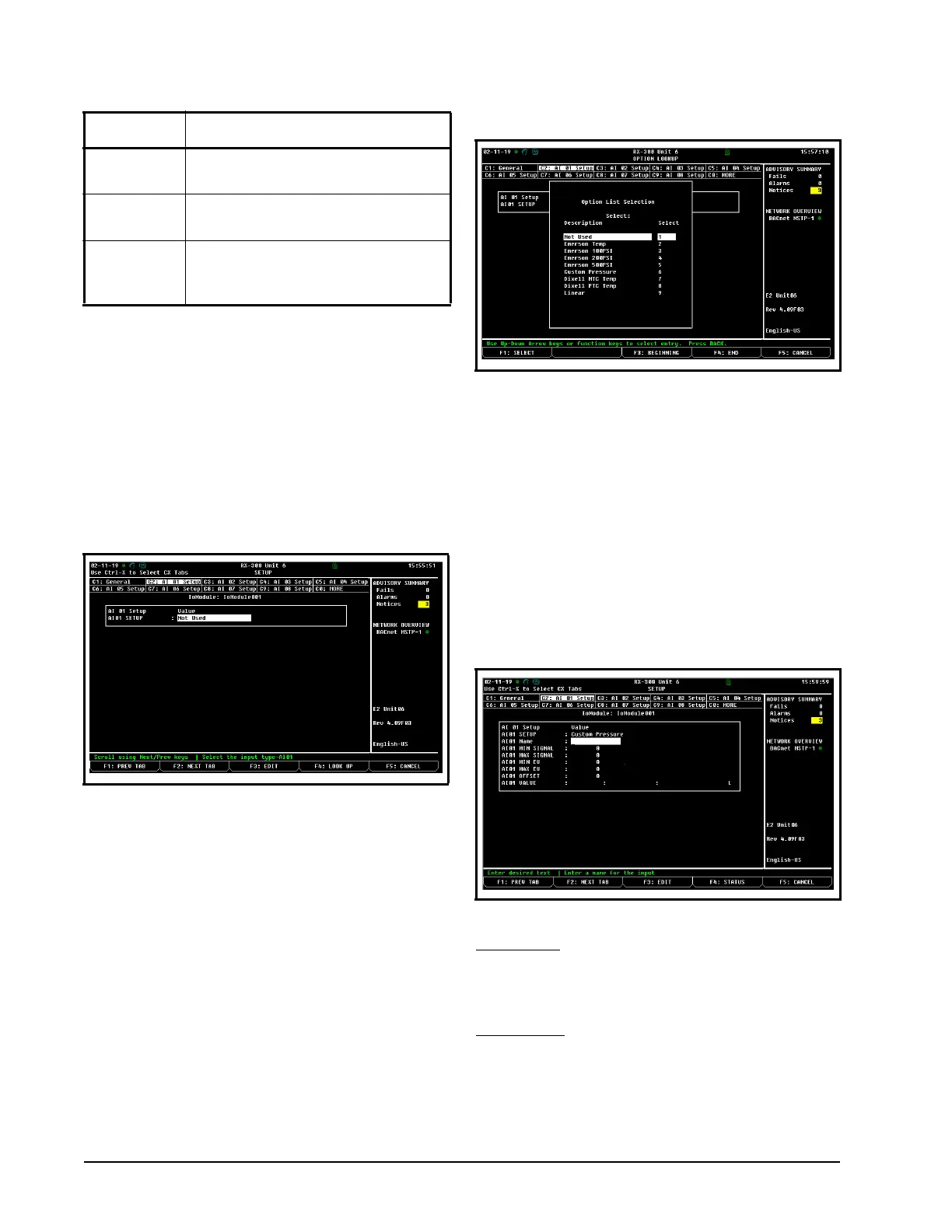

Figure 4-13 - E2E- AI 01 Setup Tabs
AI Setup Description
Table 4-1 - Input Setup Options
Figure 4-14 - E2E- AI 01 Setup Tabs
Figure 4-15 - E2E- Configuring a Custom Pressure Transducer
