2 • iPro I/O Module Installation and Operation Manual 026-1741 Rev 0
1.3 10 DIN IPG215D
Hardware Overview
1.4 Analog Input
Specifications
The below tables outline the Analog Input specifications.

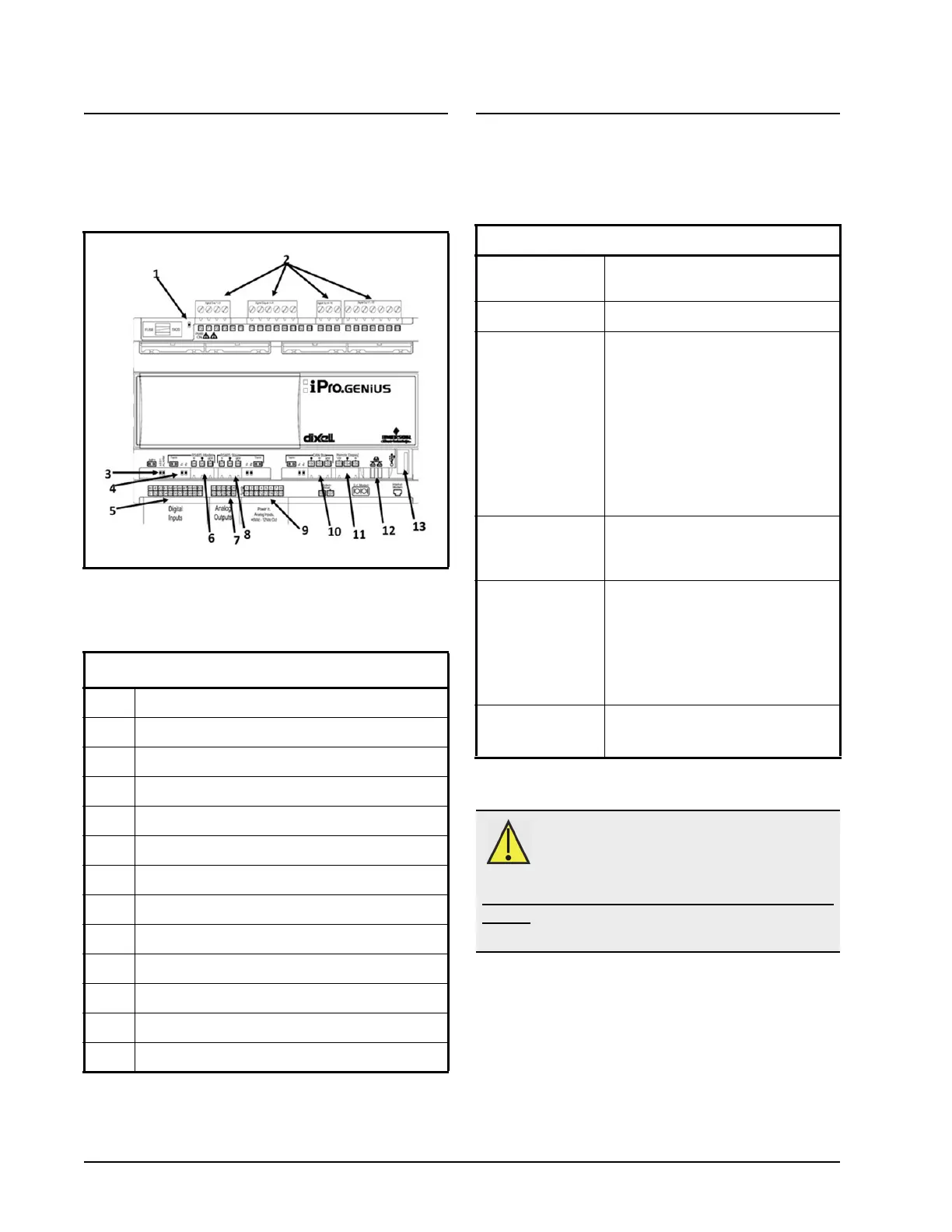

Figure 1-1 - 4 DIN IPG208D
10 DIN IPG215D Legend
1 General Status LED
2 Relay Output Connectors
3 LED 1 and General Alarm LED
4 RS485 Transmit/Received LED
5 Digital Input Connector
6 BACnet MS/TP Connection
7 Analog Output Connector
8 RS485 Slave Plug - Not Used in I/O Module
9 Analog Inputs/24VAC Power In Connector
10 CAN Bus Connection - Not Used in I/O Module
11 Remote Display Port - Visograph
12 TCP/IP Port - BACnet IP Port
13 USB Port
10 DIN 215D Analog Input Specifications
Analog conversion
type
10-bit A/D converter
Number of inputs 10
Type of analog
input
(configurable via
software
parameter)
NTC Dixell (-58T230°F; 10KΩ ±1%
at 77°F)
PTC Dixell (-67T239°F; 990Ω ±1%
at 77°F)
Emerson/CPC Temperature Sensors
Voltage: 0V, 0 to 5V, 0 to 10V (input
resistance 3.7KΩ)
Current: 0 to 20mA, 4 to 20mA (input
resistance 100Ω)
Digital input status
variation detection
time
100ms (in any case it depends on the
cycle time set by the user in the given
application)
Accuracy
NTC, PTC: ±1
°C
0 to 1V: ±20mV
0 to 5V: ±100mV
0 to 10V: ±200mV
2 to 20mA, 4 to 20mA: ±0.30mA
Additional Power
+12V: 200mA in total
+5V: 100mA
Table 1-3 - 10 DIN 215D Analog Input Specifications
CAUTION: Any inputs that are powered
with a voltage that differs from that
supplied by the device (+12V or +5V) must
be powered separately with another transformer
(do not use the same secondary of the controller’s
power) in order to prevent the inputs from
malfunctioning or being damaged.
