Connector Descriptions General Description5
1.8 Connector Descriptions

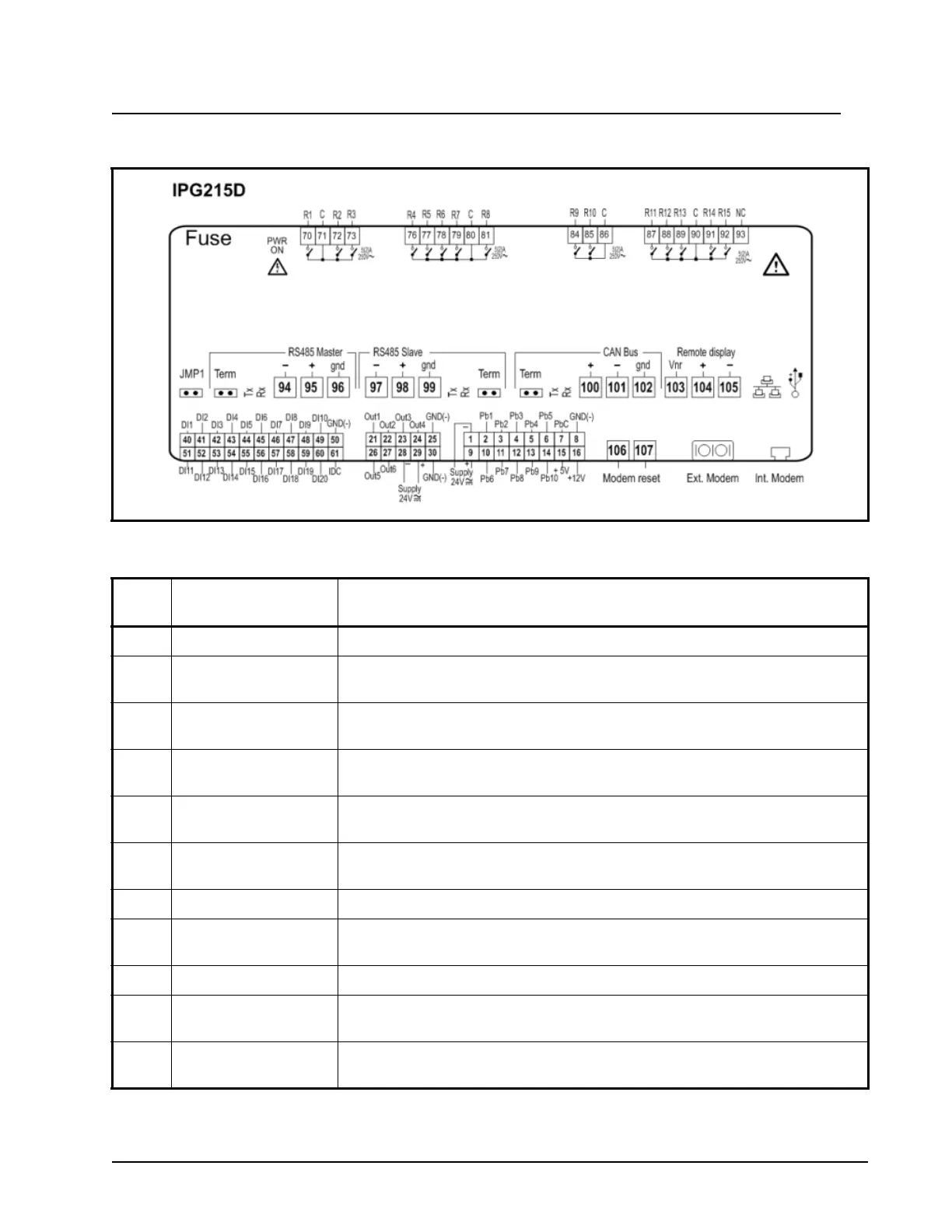

Figure 1-2 - 10 DIN 215D Connectors
Input
No.
Type of Input Description
1 Supply Reference “-”/ GND power (24VAC or 24VDC)
2Pb1
Configurable analog input 1 (NTC, PTC, 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 1V,
0 to 5V, DI)
3Pb2
Configurable analog input 2 (NTC, PTC, 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 1V,
0 to 5V, DI)
4Pb3
Configurable analog input 3 (NTC, PTC, 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 1V,
0 to 5V, DI)
5Pb4
Configurable analog input 4 (NTC, PTC, 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 1V,
0 to 5V, DI)
6Pb5
Configurable analog input 5 (NTC, PTC, 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 1V,
0 to 5V, DI)
7 PbC Common analog inputs (NTC, PCTC, DI)
8 GND (-)
Additional power reference 5VDC and 12VDC, analog inputs (0 to 20mA, 4 to 20mA,
0 to 10V, 0 to 1V, 0 to 5V)
9 Supply Reference “+” power supply (24VAC or 24VDC)
10 Pb6
Configurable analog input 6 (NTC, PTC, 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 1V,
0 to 5V, DI)
11 Pb7
Configurable analog input 7 (NTC, PTC, 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 1V,
0 to 5V, DI)
Table 1-7 - 4 DIN 208D Input Connector Descriptions
