ROC800-Series Instruction Manual
Revised July-2017 Input/Output Modules 4-25
Note: Pay close attention to the connections; do not reverse the
power wires. Make these connections only after removing
power from the ROC800. Double-check connections for the
proper orientation before applying power. If the connections are
reversed and power is applied, you may damage both the MVS
module and the ROC800-Series processor board.
You can induce ground loops by tying commons from various modules
together.
The 4088B is Remote Automation Solutions’ latest transmitter
product. Designed as a drop-in replacement for the MVS205 sensor,
you use ROCLINK 800 to configure and (if necessary) calibrate the
module.

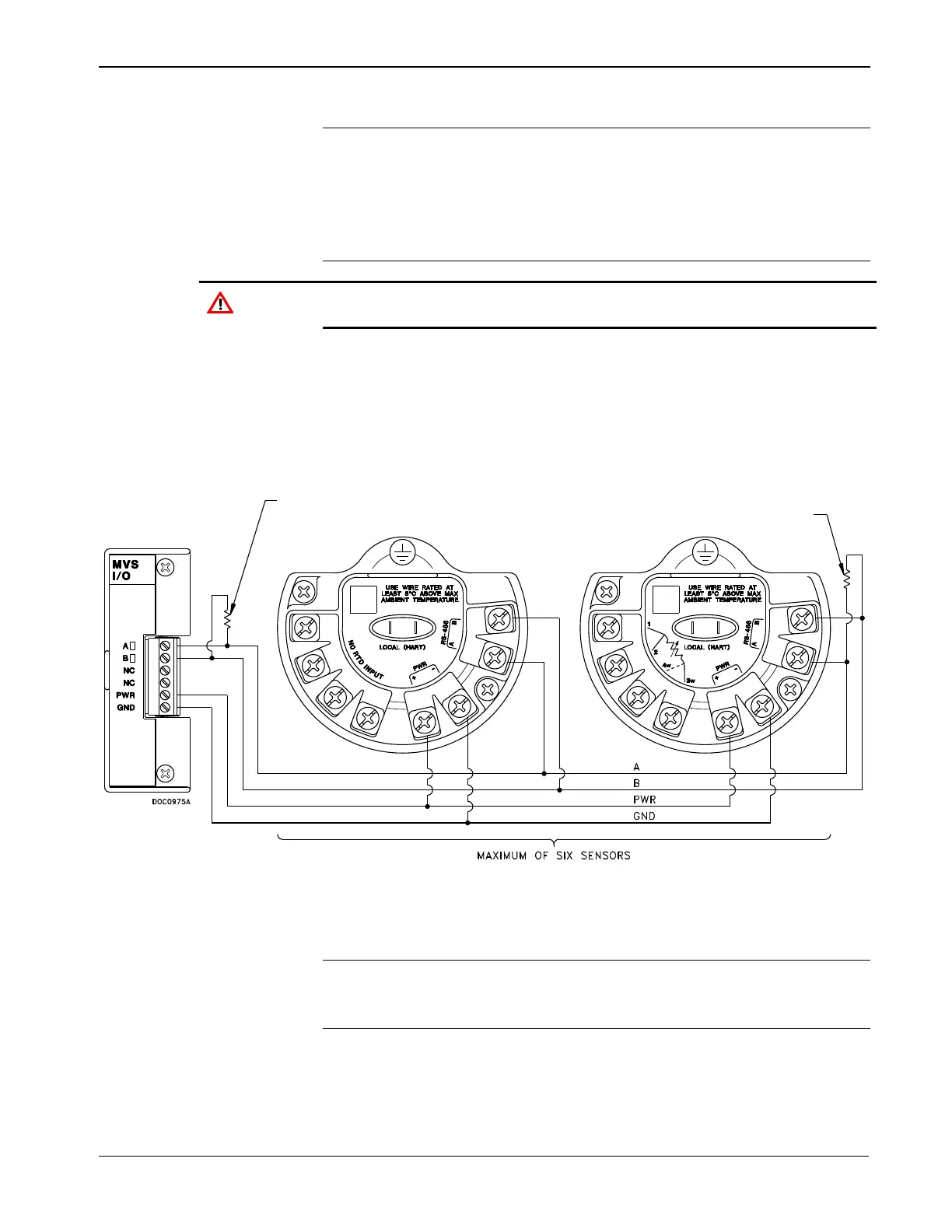

Refer to the following figure to correctly wire up to six 4088B
transmitters to the MVS I/O module.
121 customer-supplied resistor
121 customer-supplied resistor placed on ending sensor
Figure 4-31. MVS I/O to 4088B Wiring
Note: For RTD wiring, refer to Section 2 of the Rosemount 4088
MultiVariable™ Transmitter Reference Manual (00809-0100-
4088, Rev BA, January 2015) (part D301770X012).
