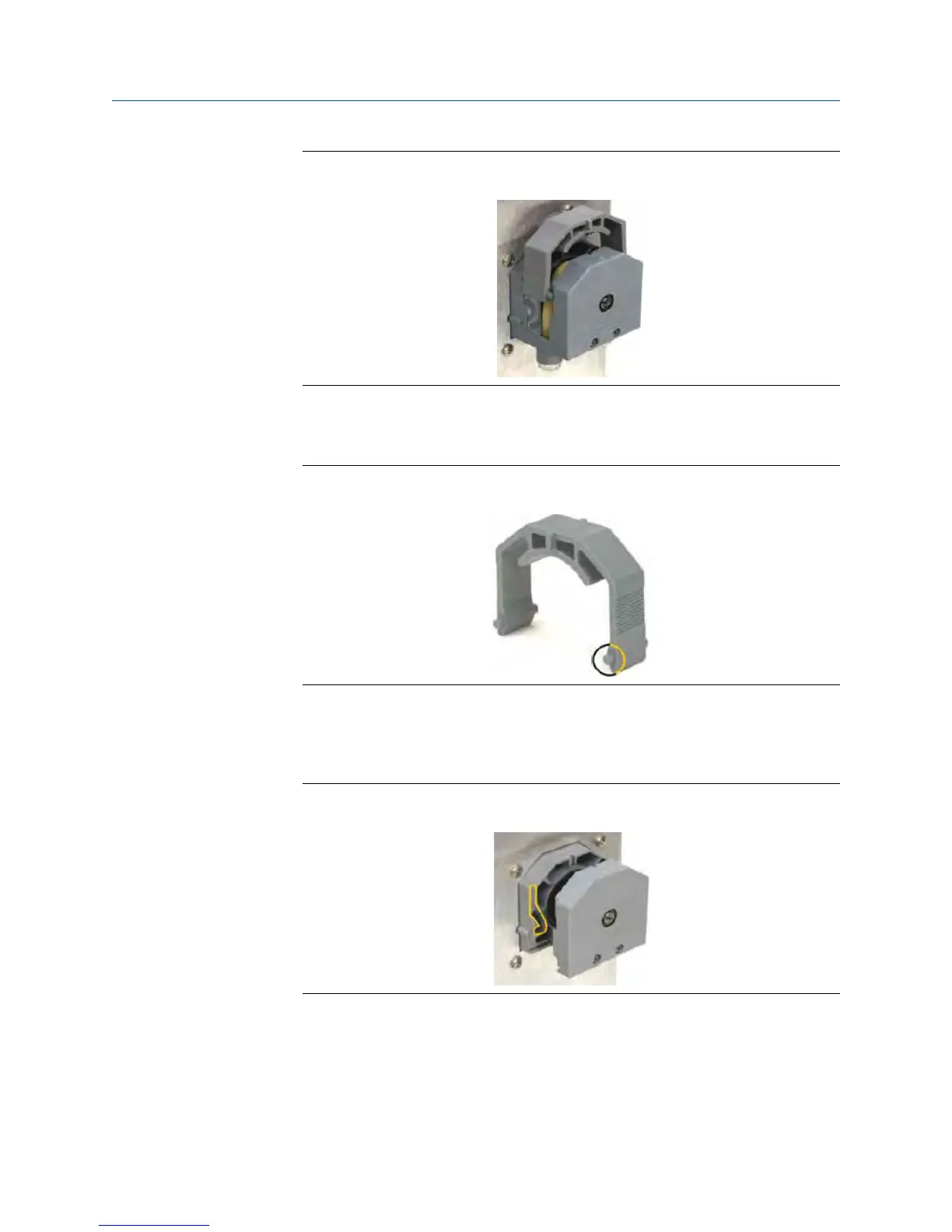

Replacing the Pump CoverFigure 12-9:
b. Be sure the pins at the bottom of the cover (Figure 12-10) ride on the tracks in the
pump casing.
PinsFigure 12-10:
c. The position of the track is outlined in Figure 12-11. The pins on the pump cover
must ride in these tracks as the cover is pushed into place. Gently squeeze the
ends of the cover to guide the pins.
TrackFigure 12-11:
d. Push down until the cover snaps into place.
8.
Reconnect the tubing.
