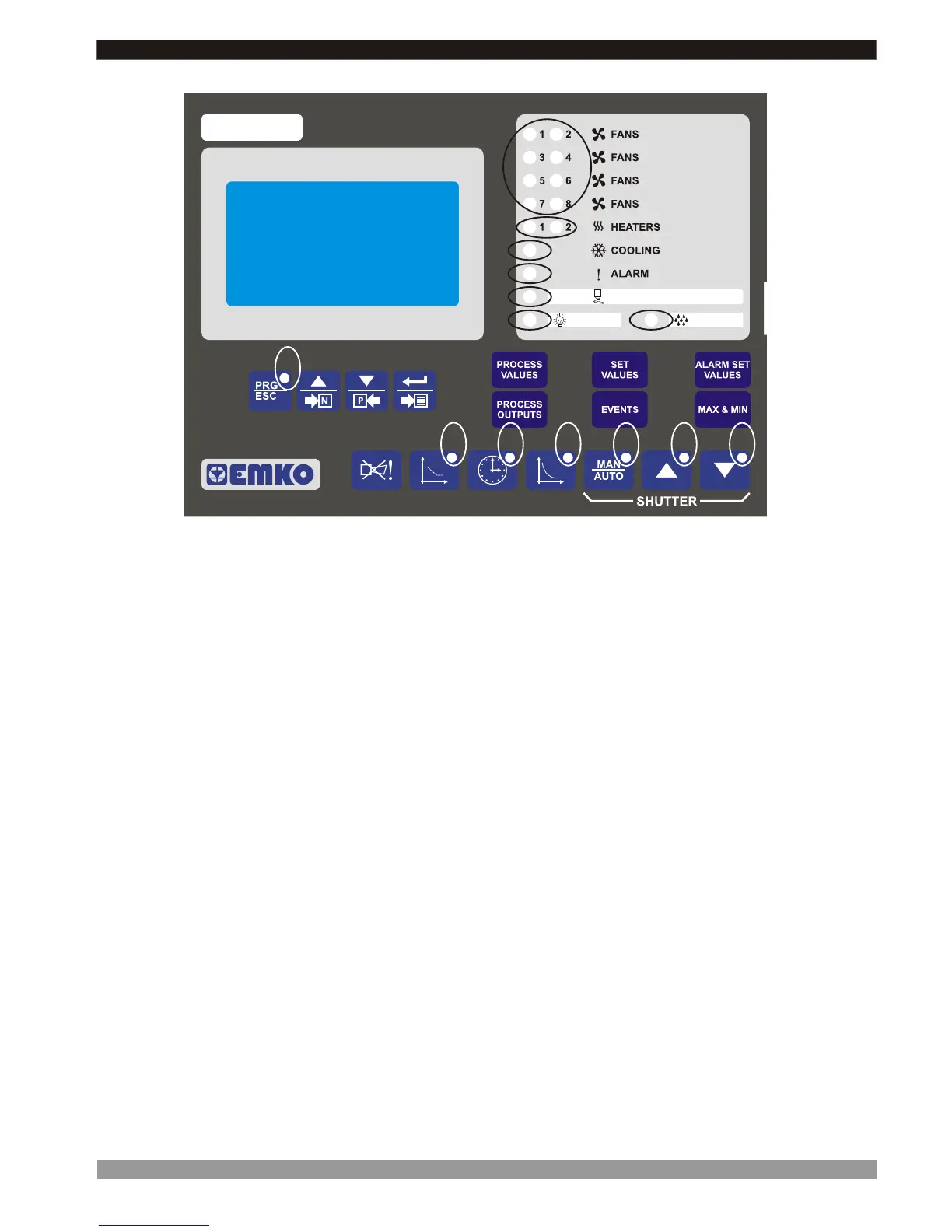

6.1.2 LEDS EXPLANATIONS
Led no Explanation
1 If technician field is accessed this led illuminates
2 If influence pages are accessed this led illuminates
3 If date setup page is accessed this led illuminates
4 If curve pages are accessed this led illuminates
5 If shutter mode is manual this led illuminates
6 If shutter up relay is on this led illuminates
7 If shutter down relay is on this led illuminates
8 These leds show which fan relays are on
9 These leds show which heat relays are on
10 This led illuminates during cooling relay is on
11 Whenever a new alarm occurs this led illuminates
12 This led illuminates during feeding relay is on(EPC3 and EPC4)
13 This led illuminates during lighting relay is on(EPC3 and EPC4)
14 This led illuminates during humidity relay is on
