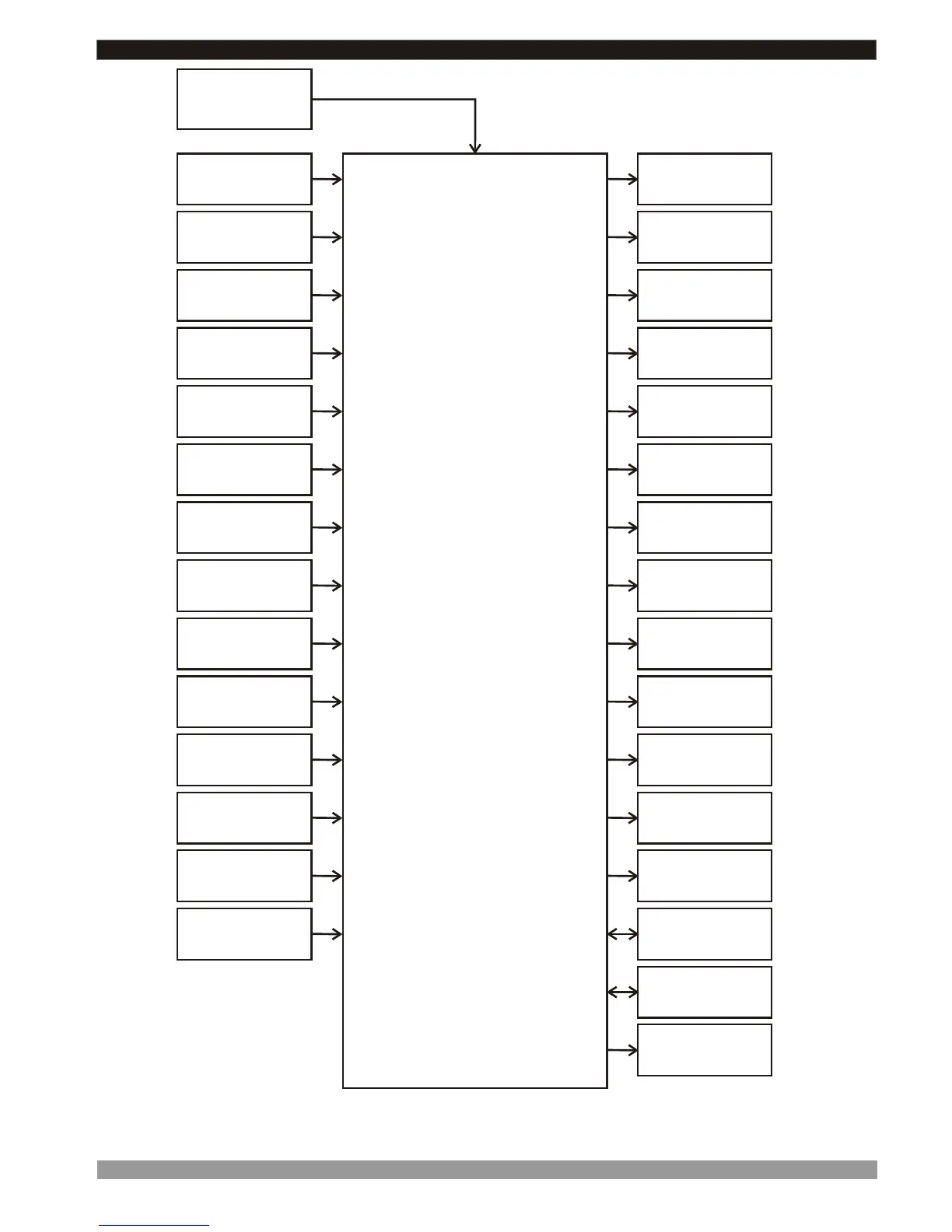

EMKO EPC-1 User Manual

MICROCONTROLLER
SUPPLY
VOLTAGE
24VZ +/-15%
PUSH BUTTONS
HUMIDITY
(0-10VZ)
ANALOG INPUT
ROOM TEMP1
Pt100 INPUT
ROOM TEMP2
Pt100 INPUT
OUTSIDE TEMP
Pt100 INPUT
FEEDING
(0-10VZ)
ANALOG INPUT
WEIGHT 1
(0-10VZ)
ANALOG INPUT
WEIGHT 2
(0-10VZ)
ANALOG INPUT
SHUTTER FEED.
(0-10VZ)
ANALOG INPUT
ALARM 1
DIGITAL INPUT
NEGATIVE
PRESSURE
DIGITAL INPUT
FEEDING
DIGITAL INPUT
ELECTRICITY
CONSUMPTION
DIGITAL INPUT
WATER
CONSUMPTION
DIGITAL INPUT
RS-232
PC COMM.
RS-485
COMMUNICATION
SHUTTER
OPEN
RELAY OUTPUT
ALARM 1
RELAY OUTPUT
FAN RELAY
OUTPUTS
COOLING
RELAY OUTPUT
HEATER 2
RELAY OUTPUT
HEATER 1
RELAY OUTPUT
SHUTTER
CLOSE
RELAY OUTPUT
HUMIDITY
RELAY OUTPUT
FEEDING
RELAY OUTPUT
LIGHTING
RELAY OUTPUT
SHUTTER
(0-10VZ)
ANALOG OUT.
FANS
(0-10VZ)
ANALOG OUT.
LIGHTING
(0-10VZ)
ANALOG OUT.
STATUS
INDICATORS
1.1 GENERAL SPECIFICATIONS
5
7
(EPC 3&4)
(EPC 4)
(EPC 4)
(EPC 3&4)
(EPC 4)
(EPC 4)
(EPC 3&4)
(EPC 3&4)
(EPC 3&4)
(NOTE-1)
NOTE-1: If the device is EPC-1A, EPC-3A or EPC-4A, then this analog input is shutter feedback input.
If the device is EPC-1 or EPC-3, there is no analog input. If the device is EPC-4, then this analog input
is WEIGH-3 Analog input(0-10V).

EMKO EPC-1 Specifications

General

Brand	EMKO
Model	EPC-1
Category	Controller
Language	English
