Parameter description (Local operation and FieldCare) Cerabar S/Deltabar S/Deltapilot S FOUNDATION Fieldbus
150 Endress+Hauser
P01-xxxxxxxx-19-xx-xx-en-137

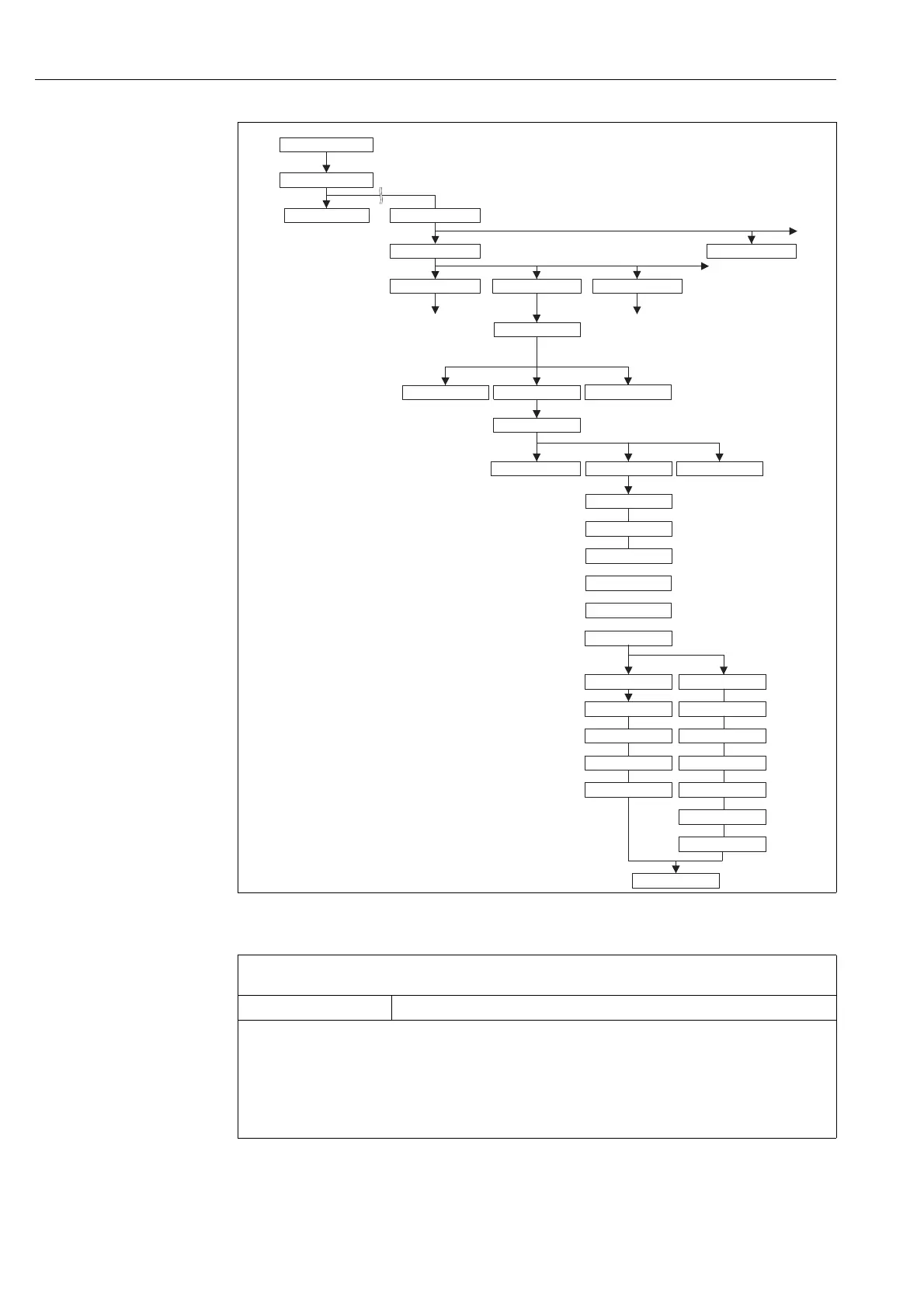

Fig. 43: BASIC SETUP function group for "Level" measuring mode and "Level easy height" level selection
1
2
1
2
*
*
LevelEasy Pressure
LevelStandard
LevelEasyHeight
LANGUAGE
Parameters marked with an asterisk "*"
are not always displayed.Thedisplay
depends on the settings of other parameters,
see the following Table.
Dry
Wet
Flow
Pressure Level
DAMPING VALUE
DENSITYUNIT
EMPTY HEIGHT
ADJUST DENSITY
EMPTY CALIB.
PRESS. ENG. UNIT
CUSTOMER UNIT P
CUST. UNIT FACT. P
BASICSETUP
DISPLAYSETTINGS
POSITION ADJUSTMENT
OPERATING MENU
GROUP SELECTION
Measured value
MEASURING MODE
EXTENDED SETUP
1) Displayvia on-site display only
2) Displayvia digital communication
LEVEL SELECTION
OUTPUT UNIT
CALIBRATION MODE
HEIGHT UNIT
FULL HEIGHT
DENSITYUNIT
ADJUST DENSITY
EMPTY CALIB.
FULL CALIB.
FULL CALIB.
Table 9: OPERATING MENU SETTINGS BASIC SETUP "Level",
LEVEL SELECTION "Level easy height"
Parameter name Description
The following parameters are displayed if you have selected the "Level easy height" option for the LEVEL SELECTION
parameter. For this level mode, specify a height unit, the density and two height-level value pairs. The pressure measured
value is converted to a height value using the density entered and the height unit. The two calibration modes, "Wet" and
"Dry", are available.
Prerequisite:
MEASURING MODE = Level ( ä 134).
LEVEL SELECTION = Level easy height ( ä 135.)
