4.4.5 Analogue Monitor
The DSV13x features two analogue outputs with a resolution of 10 Bit at a voltage level of 5V 5V to display
internal values.

Notice:
When using the analogue output notice the tolerances of the center voltage, the cut-
off frequency and the maximum output current!

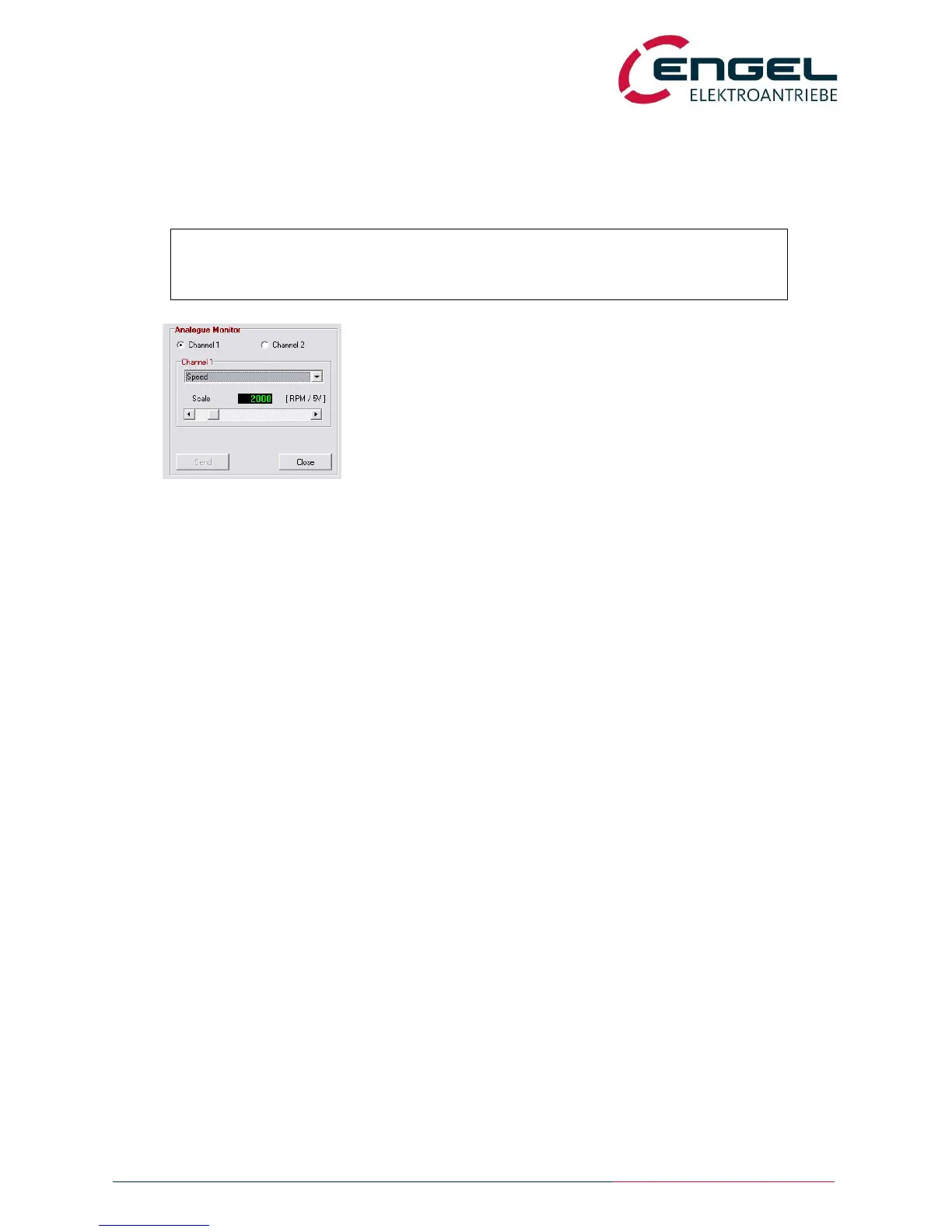

In the menu OPTIMISATION / ANALOGUE MONITOR the following values can be
selected and displayed at the desired scale:
actual speed
actual current in the q-axis I
q
(torque producing current)
actual current in phase U
actual current in phase V
rotor position angle (fixed scaling 180°/5V)
