10 Mechanical dimensions

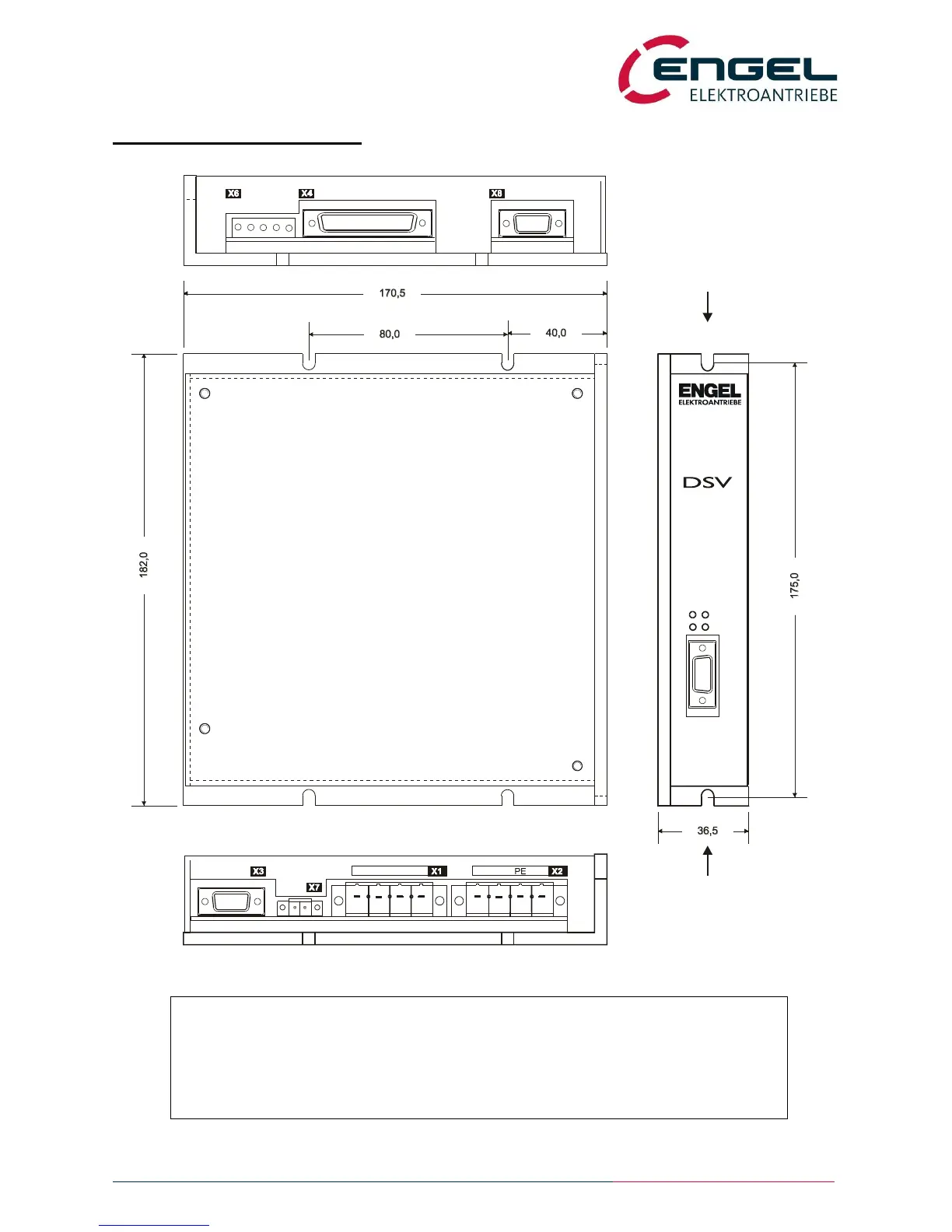

fig.: mechanical dimensions of DSV13x (in mm)

Notice:
When mounting several DSV 13x in one cabinet, keep a free space of at least 30mm
between two neighbouring DSV devices in order to enable cooling by natural
convection.
Allow a space of 80 ... 100mm on the connection side of the DSV for connectors and
wiring.
+Ub 0V TU V W PE
digital converter
Status:
CAN
Drive
A
B
Ansicht A
Ansicht B
