1. Ensure that the computer in use has an Ethernet
Controller port (RJ-45 Ethernet Port). For more
information,verifywithyourcomputer’susermanual.
2. Connect one end of the Category 5e Ethernet cable into
the RJ-45 port of the EAP900H and the other end to
the RJ-45 port of the computer. Ensure that the cable
is securely connected to both the EAP900H and the
computer.
3. Connect the Power Adapter DC connector to the DC-
IN port of the EAP900H and the Power Adapter to an
available electrical outlet. Once both connections are
secure,verifythefollowing:
a) Ensure that the POWER light is on (it will be orange).
b) Ensure that the 2.4 GHz/5 GHz WLAN light is on (it will
be bluefor2.4G,andgreen for 5G).
c) Ensure that the LAN (Computer/EAP900H Connection)
light is on (it will be blue).
  d)Once all three lights are on, proceed to set up the
Access Point using the computer.

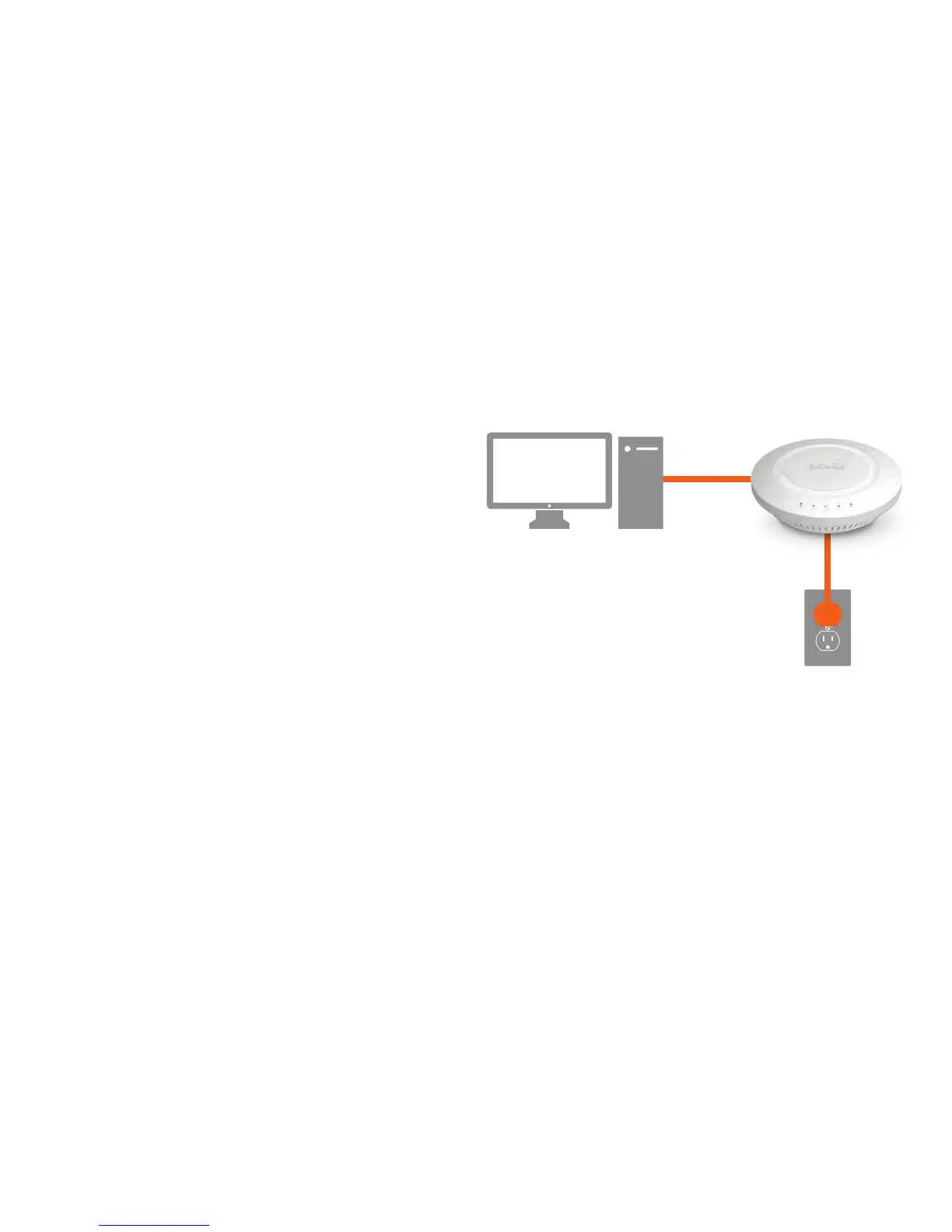

Thisdiagramdepictsthehardwareconguration.
Hardware Installation
Ethernet
PC
Power
Outlet
AC/DC
Cable
