89
WSG-1068 ENGINE
1. Disconnect the battery ground cable (14301).
2. Partially drain the radiator (8005) and disconnect the
upper radiator hose (8260) at the radiator.
3. Drain the engine oil and remove the oil bypass filter
(6714).

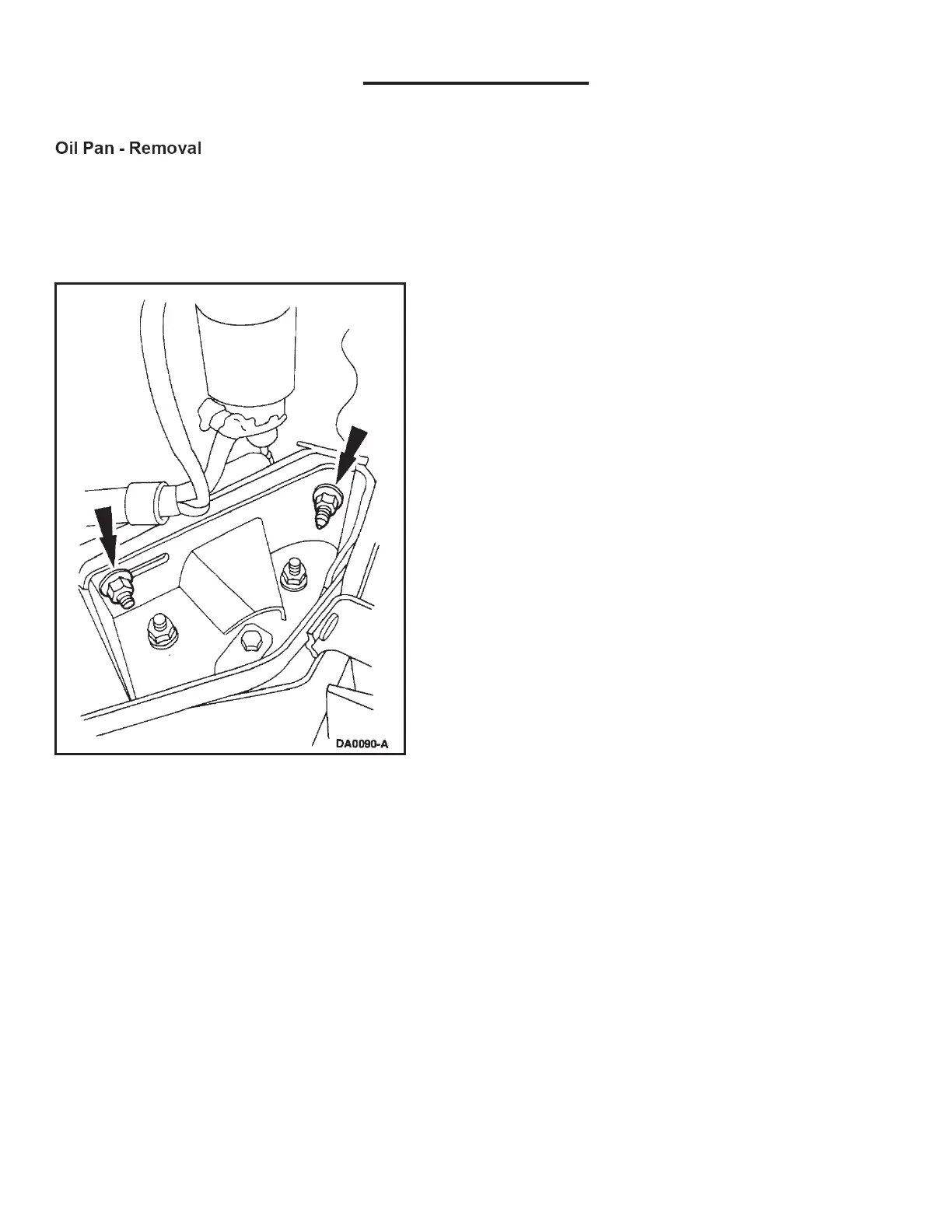

4. Remove the nuts retaining the front engine support
insulator (6038) to the front engine support bracket
(6028). The RH is shown, the LH is typical.
To Next Page
