WSG-1068 GENERAL INFORMATION

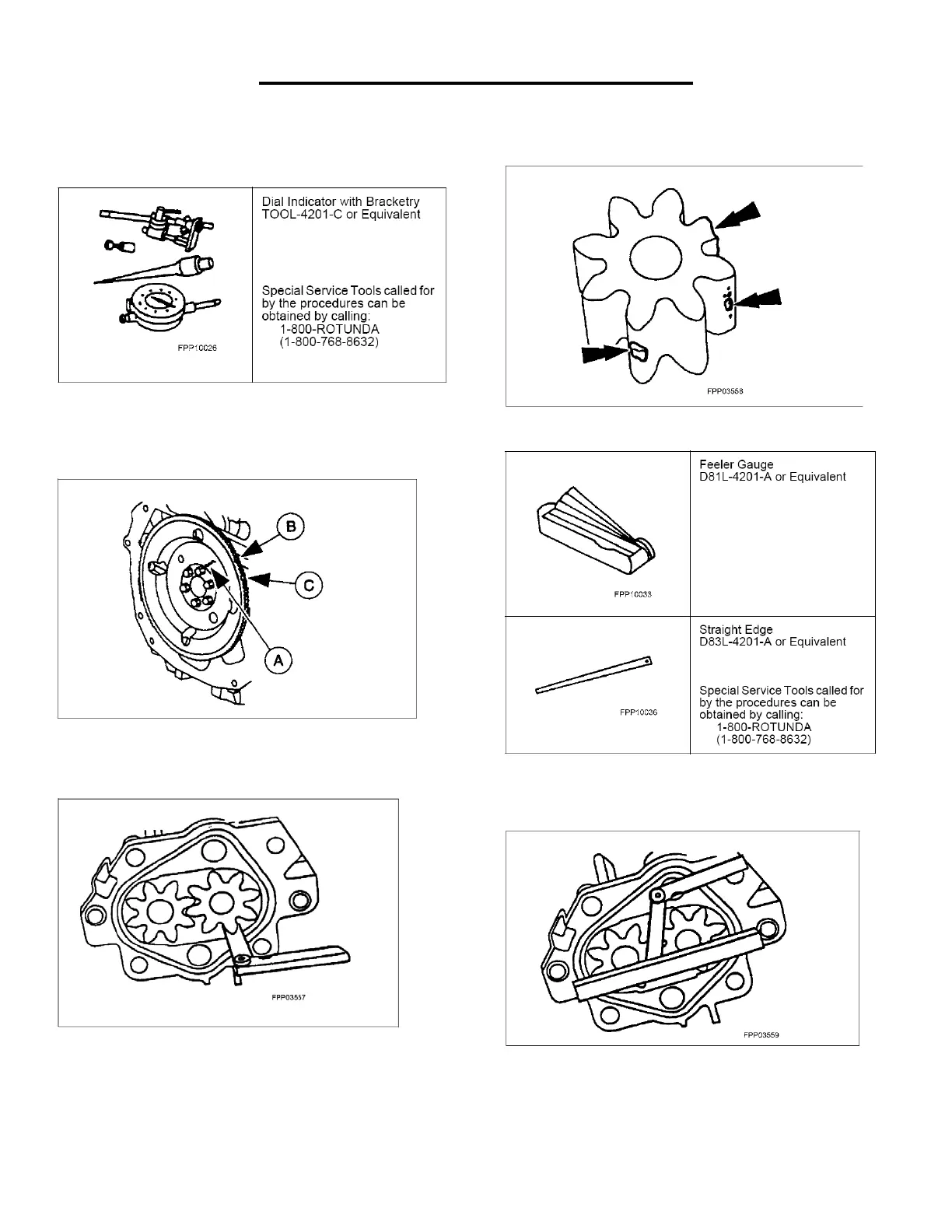

Flywheel Inspection
Special Tool(s)
1. Inspect the flywheel for:
 Cracks (A).
 Worn ring gear teeth (B).
 Chipped or cracked ring gear teeth (C).
2. Inspect the flywheel ring gear runout.
Oil Pump Gear Radial Clearance
 Measure the clearance between the rotor and
the pump housing.
Oil Pump Rotor Inspection
 Inspect the oil pump rotor tips for damage or
wear.
Oil Pump Side Clearance
 Place the Straight Edge across the top of the oil
pump and rotors and use the Feeler Gauge to
measure the clearance between the rotors and
the Straight Edge.
