WSG-1068 ENGINE CONTROLS
REMOVAL AND INSTALLATION

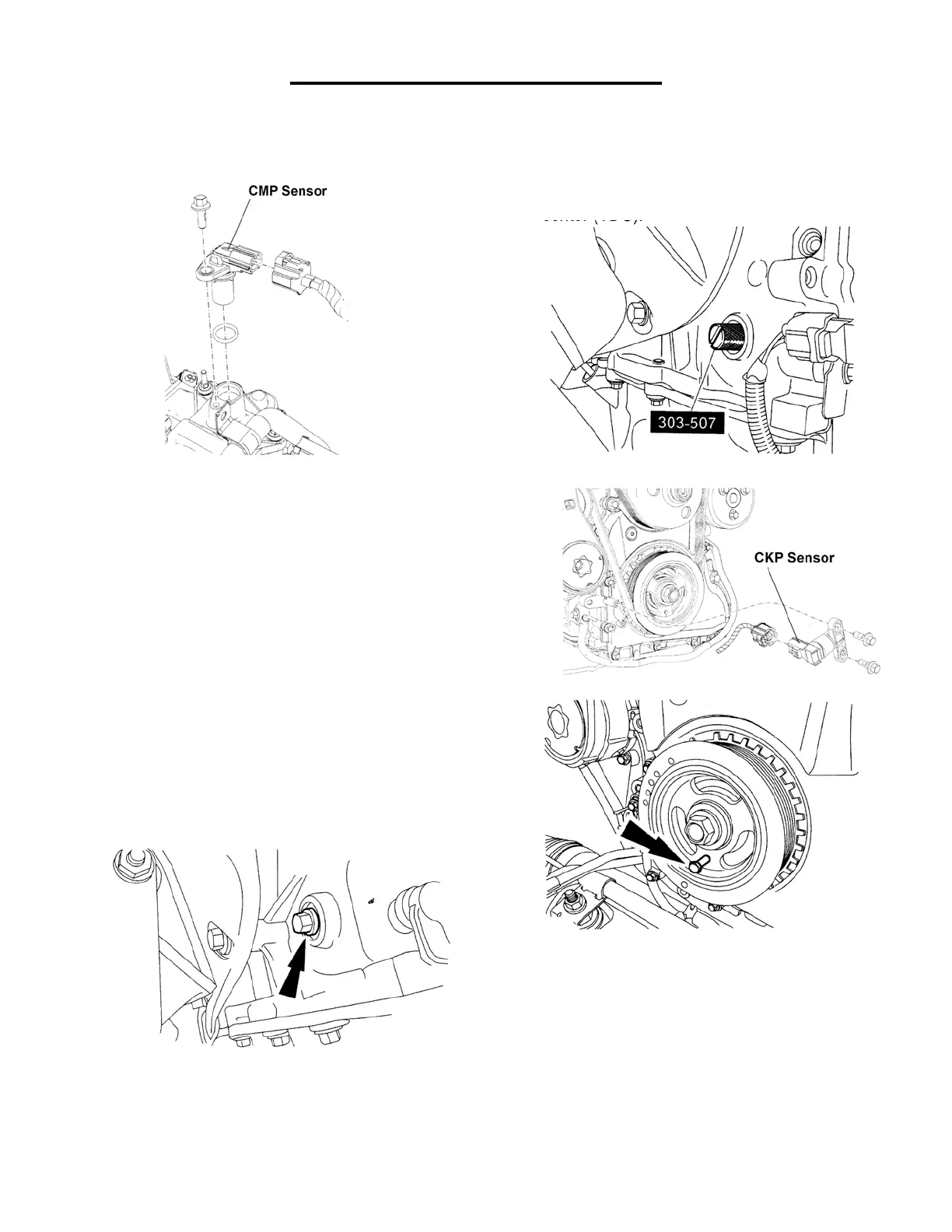

Camshaft Position (CMP) Sensor -
Replacement
1. Disconnect battery ground cable -- refer to
section 6.
2. Remove or disconnect any component to allow
access and removal of the CMP Sensor.
3. Disconnect CMP electrical connector.
4. Remove bolt and CMP Sensor.
5. Reverse procedure to install:
 Use a new o-ring seal
 Lubricate o-ring with clean engine oil prior
to installation
 Tighten bolt to 7 Nm (62 lb-in).
Crankshaft Position (CKP) Sensor -
Removal
1. Disconnect battery ground cable -- refer to
section 6.
2. Remove or disconnect any component to allow
access and removal of the CKP Sensor.
3. Disconnect CKP electrical connector.
4. Remove plug.
5. Install special tool 303-507 and turn the
crankshaft pulley bolt to position the No. 1
cylinder at top dead center (TDC).
6. Remove 2 bolts and CKP sensor.
7. Install an M6 bolt in the position shown.
