WSG-1068 ENGINE CONTROLS

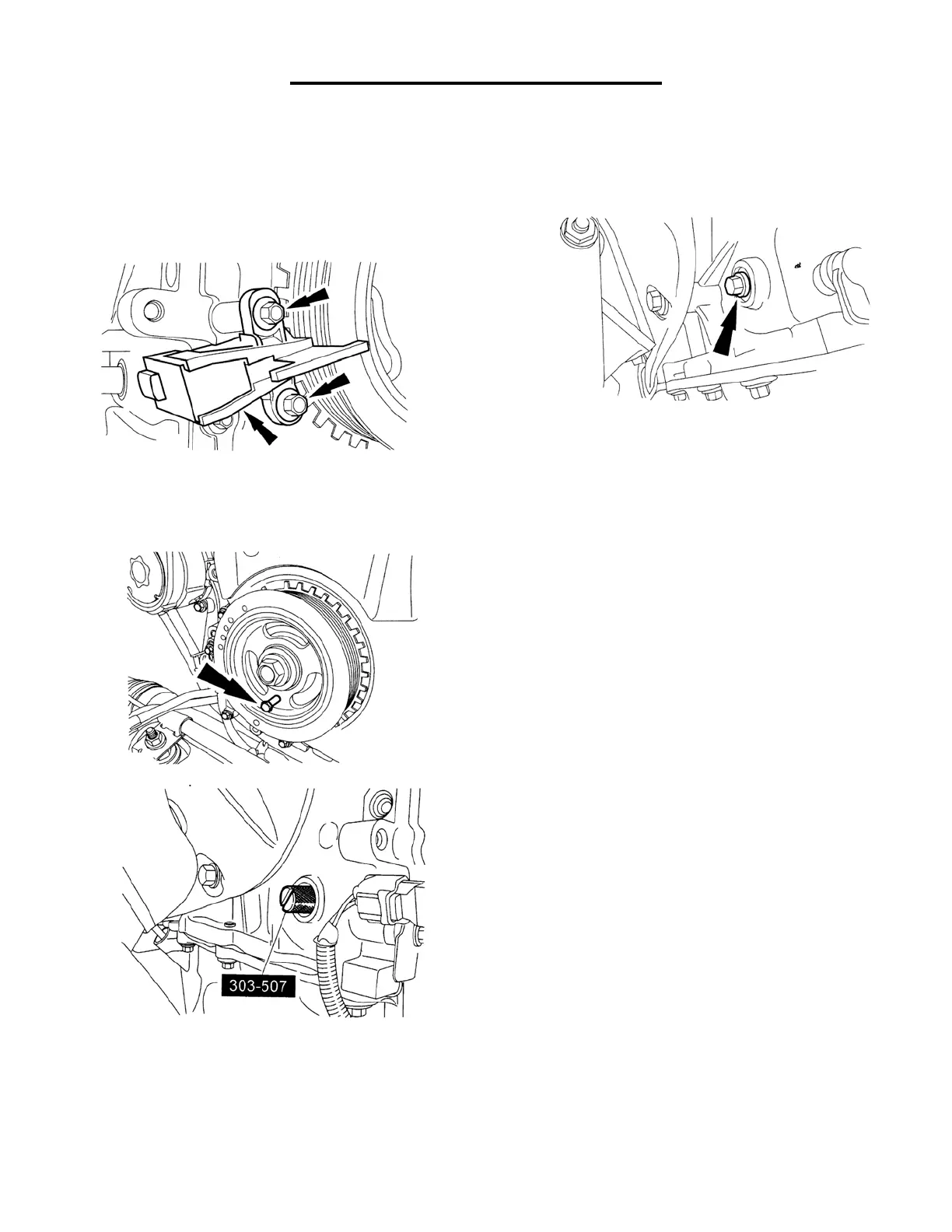

Crankshaft Position (CKP) Sensor -
Installation
1. Position CKP sensor and loosely install the 2
bolts.
NOTE: The CKP sensor alignment tool is supplied with
the new sensor and is not available separately.
2. Adjust the CKP sensor with the alignment tool
and tighten 2 bolts.
Tighten to 7 Nm (62 lb-in).
3. Connect CKP sensor electrical connector
4. Remove the M6 bolt.
5. Remove special tool 303-507.
6. Install the plug:
Tighten to 10 Nm (89 lb-in)
7. Reconnect or install any other component that
was removed.
8. Reconnect battery cable -- refer to section 6.
