288
WSG-1068 ENGINE CONTROLS
Symptom Charts
NOTE: If you have a symptom of the pedal not working,
and no DTC is set, go to the voltage screen and check
pedal voltage. If pedal voltage is.75-1.25 volts, and idle
validation switch says you're at idle - replace the pedal.
NOTE: Items listed in the possible cause column
generally do not set a diagnostic trouble code (DTC)
orilluminate the MIL light.
NOTE: EDI engines are used in many different
applications and equipment. When performing any
system diagnosis be aware of any OEM inputs or
equipment monitoring devices that may have an effect
on the engine’s performance or any of the engine’s
operating systems.

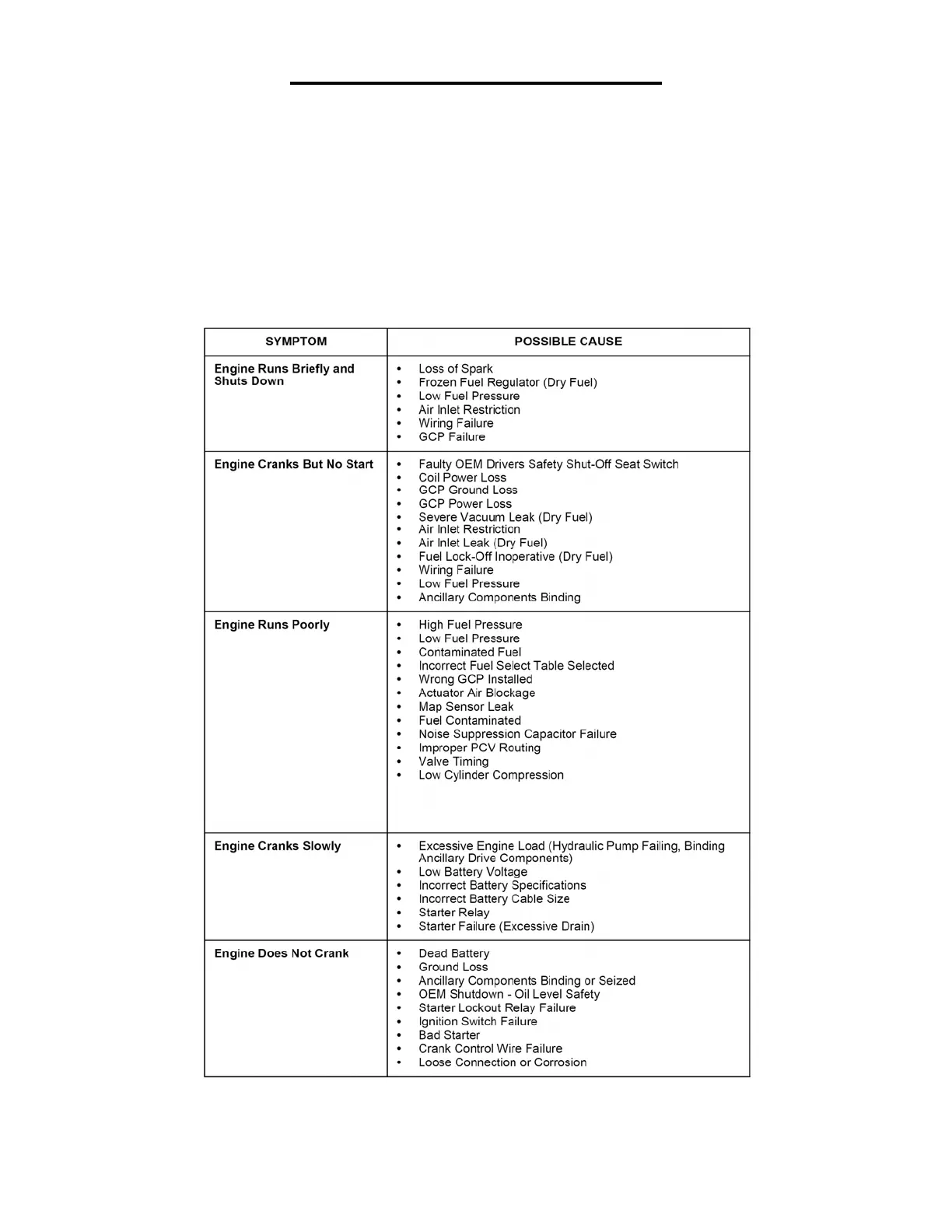

Engine Performance - No Load
