107

WSG-1068 ENGINE
5. Remove the drive belt.

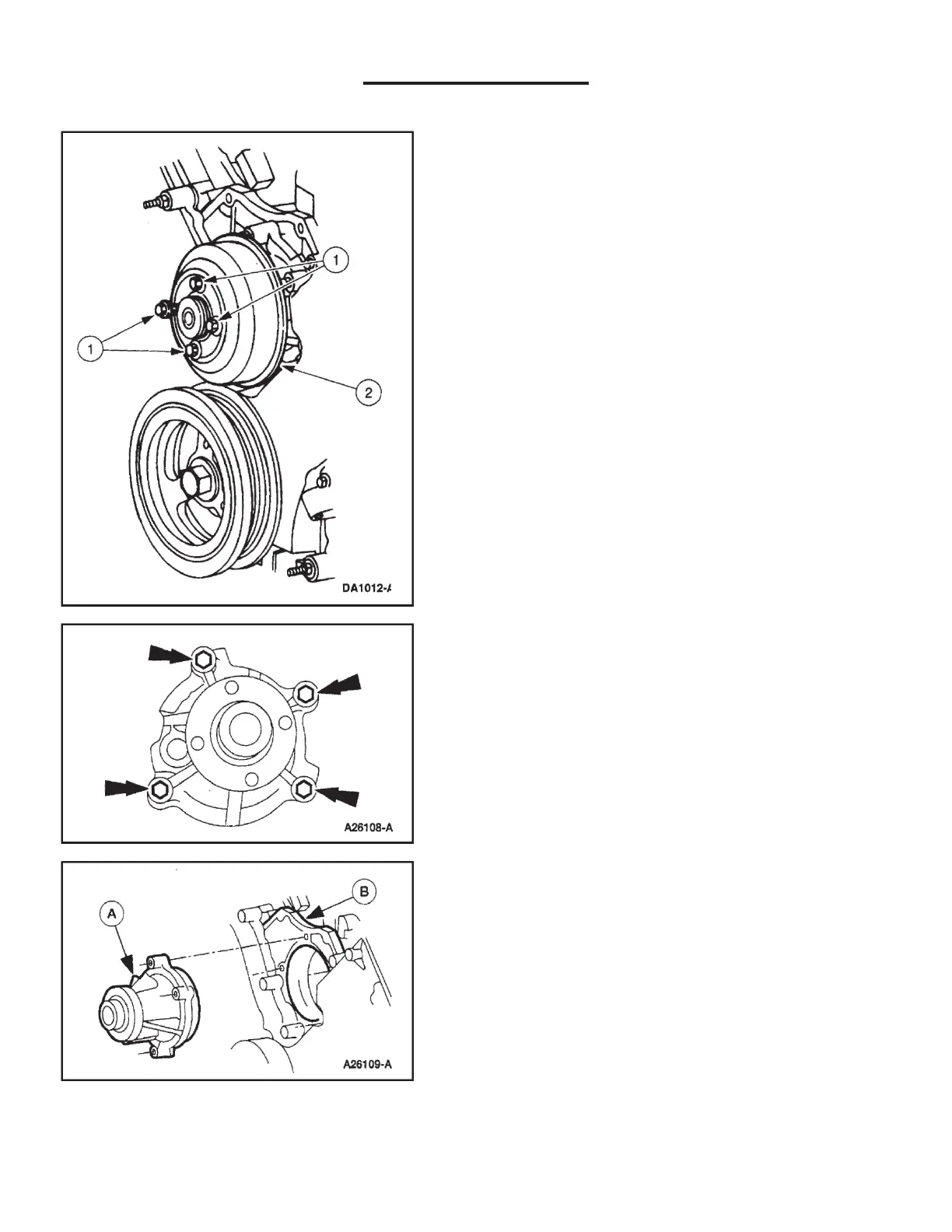

6. Remove the water pump pulley (8509).
1. Remove the four bolts.
2. Remove the water pump pulley.
7. Remove the four bolts from the water pump.
8. Remove the (A) water pump (8501) from the (B)
cylinder block (6010).
