CAUTION: Unless otherwise instructed, at
no time when the timing chain are removed and
the cylinder heads are installed is the crankshaft
or camshaft to be rotated. Severe piston and
valve damage will occur.
Remove the Crankshaft Holding Tool.

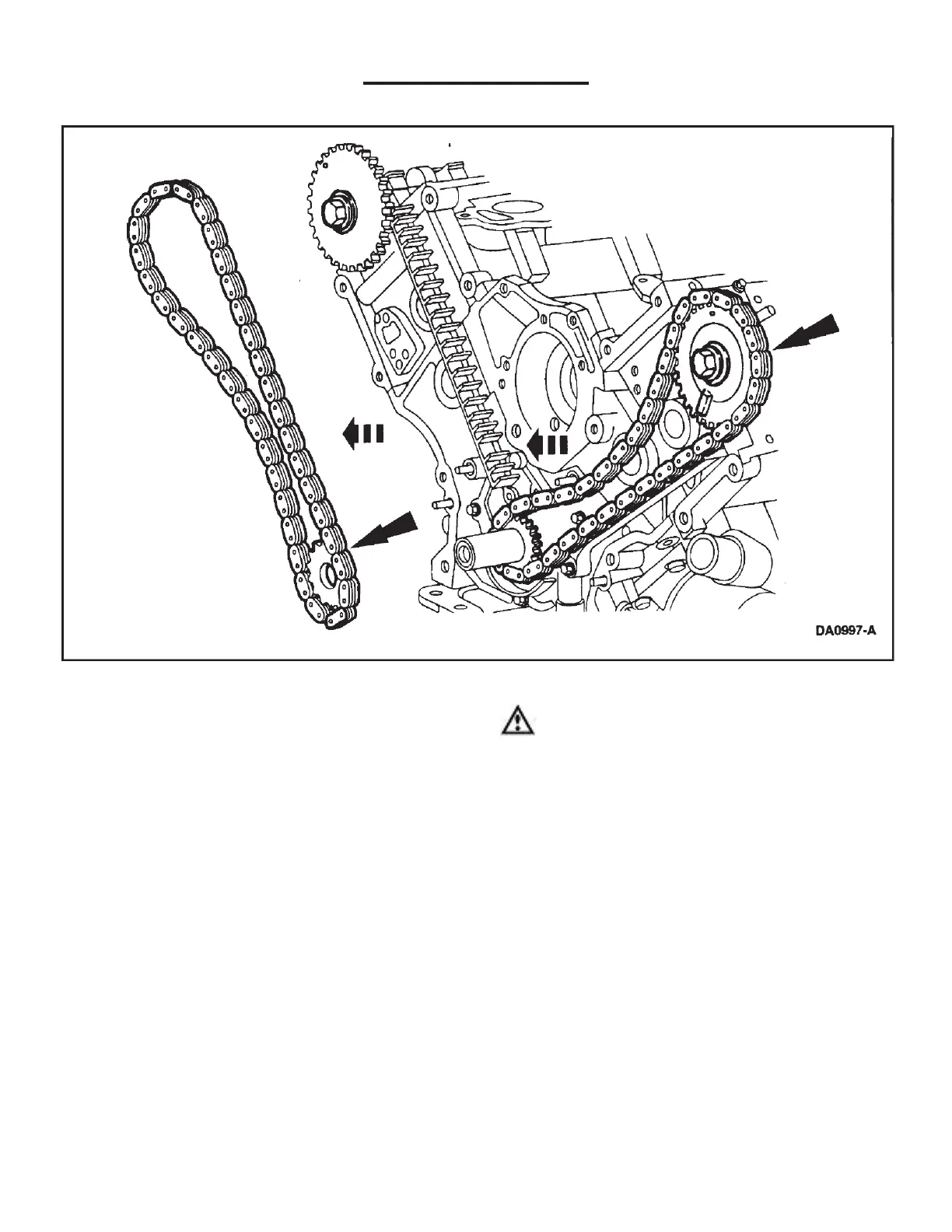

Remove the RH timing chain from the camshaft
sprocket (6256).
Remove the RH timing chain and outer crankshaft
sprocket from the crankshaft.
Repeat for the LH timing chain and crankshaft
sprocket.
