129
WSG-1068 ENGINE

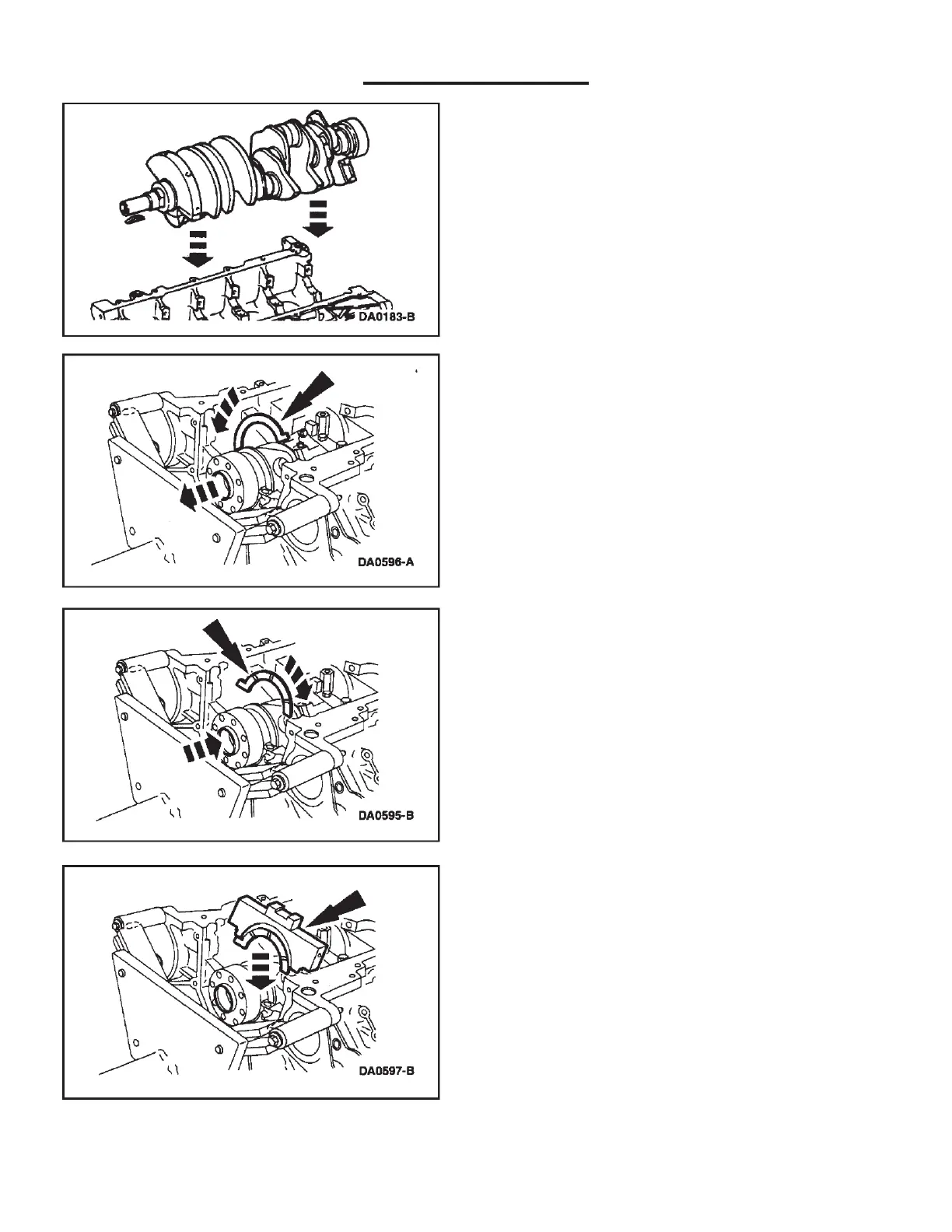

2. Install the crankshaft (6303) into the cylinder block
and onto the upper crankshaft main bearings (6333).
3. Push the crankshaft rearward and install the rear
lower crankshaft thrust washer (6334) at the back
of the No. 6 main boss.
4. Push the crankshaft forward and install the front
lower crankshaft thrust washer at the front of the
No. 6 main boss.
5. NOTE: To aid in assembly, apply petroleum jelly to
the back of the crankshaft thrust washer.
Install the upper crankshaft thrust washer to the back
side of the No. 6 main bearing cap, with oil grooves
facing the crankshaft surface, and install the No. 6
rear main bearing cap.
